    99.97% Replacement Deep Pleated HEPA Air Filter With Paper Seperator Rohs

    Ask Lasest Price
    Brand Name : Zhisheng
    Model Number : ZS-GB610-H13
    Certification : ISO 9001, Rohs
    Supply Ability : 500 pieces per month
    Delivery Time : about 15 days upon receipt of deposit
    • Product Details
    • Company Profile

    99.97% Replacement Deep Pleated HEPA Air Filter With Paper Seperator Rohs


    99.97% Replacement Deep Pleated Hepa Air Filter With Paper Seperator


    Description:


    Deep Pleat HEPA filters are manufactured from the highest quality components, under demanding quality control conditions, and are certified to ensure performance in the most critical of applications.


    The efficiency from 99.97% to 99.999% on 0.3 micron particles.


    HEPA level air filtration in applications wherein ultra-clean air, increased airflow capacity and energy-savings are critical.


    High capacity HEPA filter are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.


    Applications:


    HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors.


    It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.


    Material and operating conditions:


    External frameWooden case
    SealantPolyurethane
    SeparatorPaper
    Filter mediaPP or fiberglass
    Maximum operating temperature80°C
    Maximum operating humidity100%
    HEPA filter Efficiency≥99.97%

    Features:


    1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.


    2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats


    3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.


    4: The sealant around the media so that the air filter without any air leaking,

    the frame can be wooden, aluminum,galvanized or stainless steel.


    5: Laser to scan the each air filter one by one,


    6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,

    95%-99.99995%@0.3um (EN1822).


    7: Each air filter with test report accompany


    Size and Specification:

    ModelDimensions(mm)Rated air flow (m3/h)Initial resistance (Pa)Efficiency (MPPS)Class (EN1822)
    ZS-GB320320x320x220400≤220(fiberglass) ≤120(HV fiberglass) ≤120(PP)95% -99.995%F9-H14
    ZS-GB350350x350x220500
    ZS-GB484484x484x2201000
    ZS-GB630630x630x2201500
    ZS-GB610610x610x1501000
    ZS-GB915915x610x1501500
    ZS-GB12201220x610x1502000
    ZS-GB295295x595x2921400
    ZS-GB595595x595x2922800
    ZS-GB305305x610x2921500
    ZS-GB610-2610x610x2923000

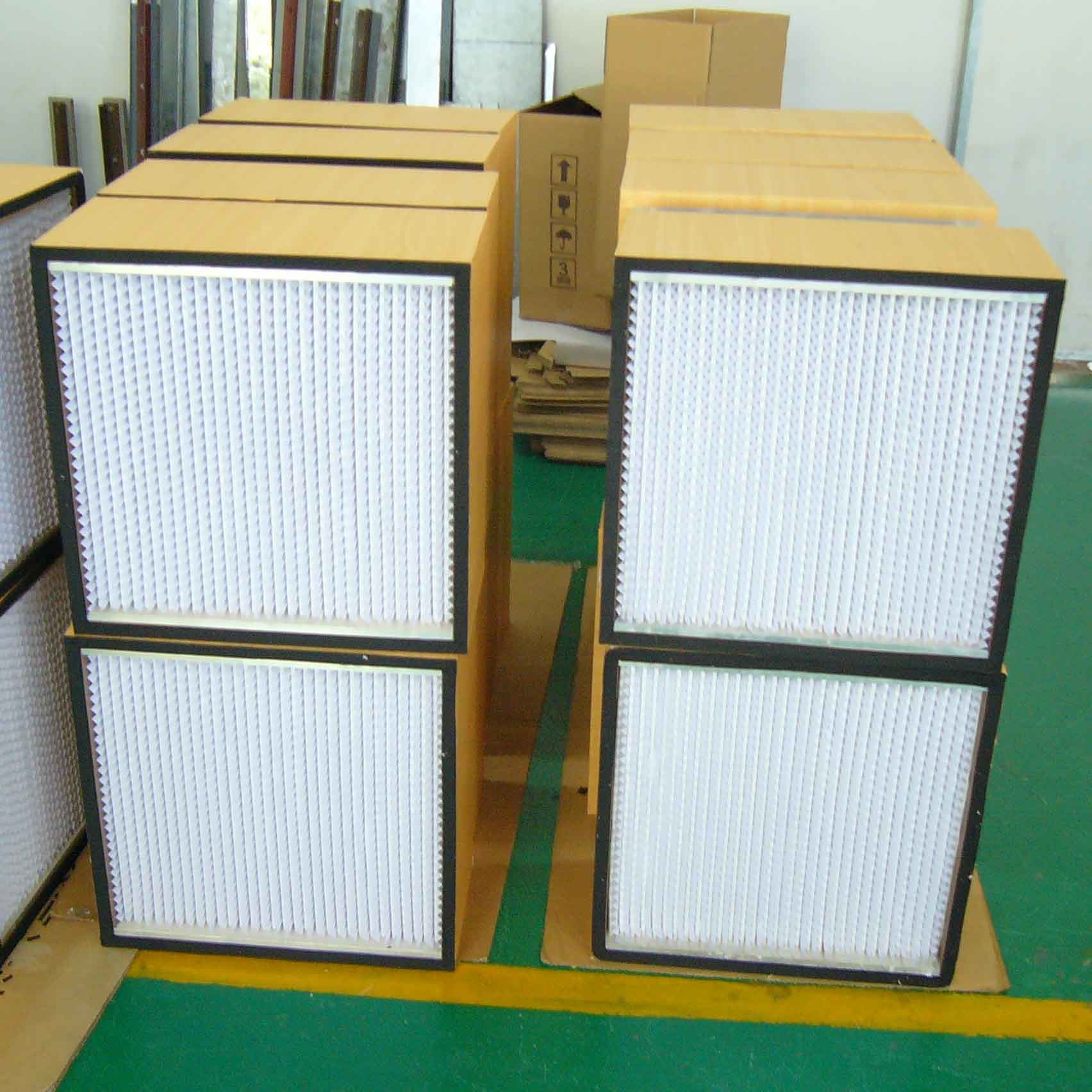

    Pictures of HEPA filter


    99.97% Replacement Deep Pleated HEPA Air Filter With Paper Seperator Rohs

    99.97% Replacement Deep Pleated HEPA Air Filter With Paper Seperator Rohs


    Payment Term:


    40% prepayment by T/T at order, the balance of payment before shipment.


    Packing:


    Carton and Plywood Case

    Delivery time:


    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.


    After sales service:


    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We care of your complain within 48hours.


    Quality 99.97% Replacement Deep Pleated HEPA Air Filter With Paper Seperator Rohs for sale
