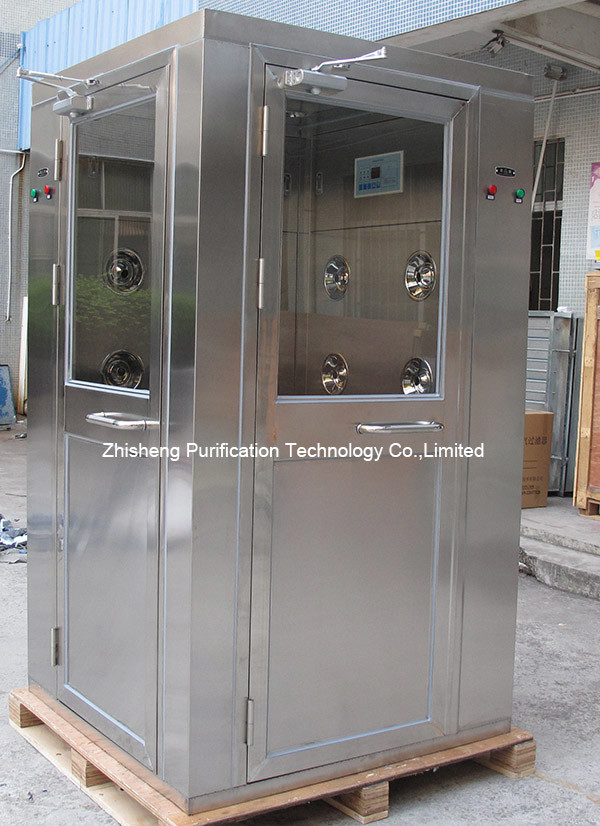

Full Stainless Steel Personal Cleanroom Air Shower With Two Blowing
to Food Factory For One Person
Air Shower Description
The newest air shower's feature is vertical flow that the air come
out from the top and then return from the bottom.
The clean high speed wind that come out from the top blow off the
dust on body by the gravity.
It won’t produce the whirlpool to insure the remarkable effect of
air shower in deep degree.
However, for the traditional Air Shower cause whirlpool easily by
irregular airflow.
And the dust isn't easy to take out immediately. It causes the dust
rise up again.
When the door is opening, it is easy to bring the dust to the clean
room.
It makes a bad effect to the environment of clean room.
Air Shower Features
1. High velocity shower jets in excess of 24 m/s ensure efficient
scrubbing action to remove particulate matter.
2.Vertical airflow feature removes residual particulate
contamination in chamber.
3. Operating modes can be programmed in the field.
4. Microprocessor controller supervises all functions.
5. Mini-pleated ULPA filtration achieves >99.999% typical
efficiency for particle size between 0.1 to 0.3 microns.
6. A disposable pre-filter with 85% arrestance extends the life of
the main filter.
7. An emergency stop button is mounted on both sides of the shower.
8. Indicator lights mounted on both sides of the air shower
exterior regulate traffic flow in and out of the cleanroom.
9. Permanently lubricated direct drive centrifugal blowers are used
in conjunction with stainless steel air nozzles.
10. Vertical Airflow System continues to purge the chamber of any
remaining particulates following the high velocity air cycle.
11. Improved direct drive centrifugal blowers
12. Vacuum impregnation for higher motor protection
13. Thermal overload protection is wired internally
14. Dual frequency (50/60 Hz) compatible
Features:
| Product type | Full Stainles steel Personal Cleanroom Air shower |
| Material for casing | T=1.2 Stainless steel 304 for Outside and inside casing |
| Material for doors | Stainless steel 304 with half temper glass |
| Nozzles | Stainles steel |
| Door leaf | Single leaf |
| Door type | Manual swing door |
| Blowing way | Two-side blowing, |
| Control system | English IC intelligent control panel with human voice |
| Locks | Electric mortise lock |
| HEPA filter efficinecy: | H14 |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s above |
| Power supply | AC 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from
electric leakage) |
Standar size and specificaton:
| Product | Full Stainles steel Personal Cleanroom Air shower |
| Model | ASS-1200T-1.2 |
| External dimensions (mm) | W1200*D1200*H2130MM |
| Internal dimensions WxHxD(mm) | W900*D900*H2000MM |
| Doors | 2sets of SS single-leaf swing door |
| Door closer | 2 sets (Outside) |
| Lock | 2sets of electric locks interlocked |
| Suitable person | One person |
| Nozzles | 6+6+4=16 PCS(3-side blowing ) |
| Blower fan | 2 sets |
| Blow power(W) | 800W |
| Weight(kg) | Appro.280 |
| HEPA filter size | 610x610x69mm |
| HEPA filter qty | 2 PCS |
| HEPA filter efficiency | 99.99% at 0.3um |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | Philips 1x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric
interlock, automatical blowing by photoelectric sensor |
Air Shower Details:
Drawing:
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international Standards before
shipment. Each unit is shipped with a documentation outlining the
tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
