Hidden Auto Double Leaf Sliding Doors Cargo Air Shower Tunnel For
Materials and Goods
Air shower
with high speed shutter door.pdf
Doors:Automatic Double Leaf Sliding Doors
Width: 1800mm
Description:
Air Shower Tunnels are used as downflow booths to remove
particulate contamination from personnel entering clean rooms and
sterile rooms.
Your Air Shower Tunnel can be designed to suit your facility and
placed either side-by-side or end-to-end.
Our Air Showers and Tunnels meet all federal, military, and
industrial specifications for use with life science, bio medical,
pharmaceutical, parental drug,
microelectronic, aerospace, precision manufacturing, and like
applications.
All Air Showers and Air Shower Tunnels are warrantied for a period
of one year from the date of delivery.
Cargo Air Shower Tunnel for clean room is a kind of partial clean equipment with rather
strong universality and is installed at the partition between the
clean and non-clean rooms.
Its used for the personnel or matters to shower before entering the
clean area. After using it, the dust could effectively be reduced
to enter the clean area and maintain the normal working status.
Blowing type: single-side blowing, double-side blowing, three-side
blowing.
Features:
1. The control system run automatically by photoelectric sensor,
the two door are electric interlocked.
(One door in open state, the other door must in close state. When
people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel,
good appearance.
5. When air shower is used to pass cargo, it is without
bottom-board.
Optional accessory:
1. Manual swing door / automatic sliding door/High speed scroll
shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated
/ SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
Parameter:
| Product type | Hidden Auto Double Leaf Sliding Doors Cargo Air Shower Tunnel For
Materials and Goods |
| Material for casing | T=1.2MM Power coated steel for outside, SS304 for inside |
| Material for doors | Stainless steel 304 |
| Nozzles | Stainles steel |
| Door leaf | Doubleleaf |
| Door type | Sliding doors |
| Blowing way | 3-side blowing |
| Control system | English intelligent control panel with human voice |
| Locks | Electric interlocked |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from
electric leakage) |
size and specificaton:
| Product | Hidden Auto Double Leaf Sliding Doors Cargo Air Shower Tunnel For
Materials and Goods |
| Model | AS-3800T-3.15-AD |
| External dimensions (mm) | W3800*D3150*H2600MM |
| Internal dimensions mm | W1800*D3150*H2400MM |
| Doors | 2 sets of SS double-leaf sliding doors |
| Door closer | NONE |
| Lock | electric interlocked |
| Suitable | People and Goods |
| Nozzles | 24+24+18=66 PCS(3-side blowing) |
| Blower fan | 6 sets |
| Blow power(W) | 6000W |
| Weight(kg) | Appro.1200 |
| HEPA filter size | 915x610x90mm |
| HEPA filter qty | 6 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 2 PCS |
| Fluorescent Lamp | Philips 3x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric
interlock, automatical blowing by photoelectric sensor
|
Air shower Details:

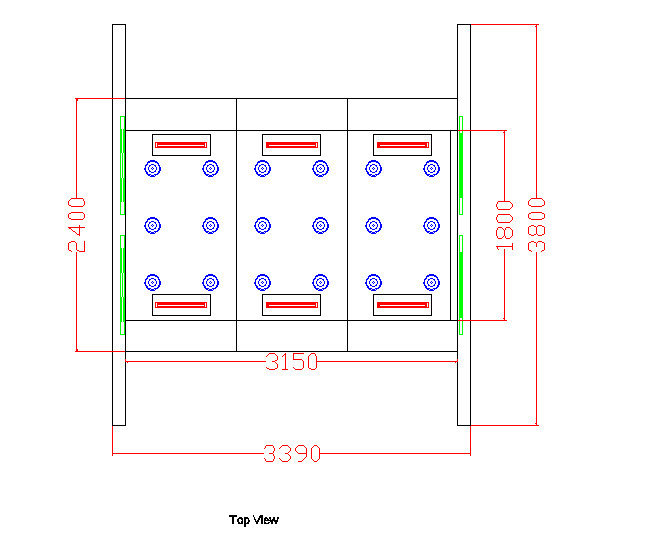

Drawing of Air Shower Tunnel
Can custom air showers be manufactured?
We offers both standard and custom air showers. Please contact us
for more information.
Is it possible to alter the settings on the air shower?
Our air showers allow the operator flexibility to program numerous
settings using an easy-to-use touch-screen control panel. You can
easily set cycle operation times, entrance/exit delays, when the
lights turn off/on, and more.
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international Standards before
shipment.
Each unit is shipped with a documentation outlining the tests
undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
