Full Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean room

DONGGUAN LIHONG CLEANROOM CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Full Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean room from wholesalers

    Buy cheap Full Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean room from wholesalers
    • Buy cheap Full Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean room from wholesalers
    • Buy cheap Full Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean room from wholesalers

    Full Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean room

    Ask Lasest Price
    Brand Name : Zhisheng
    Model Number : ASS-1400D-1.2-LS
    Certification : ISO 9001/CE/ROHS
    Payment Terms : T/T, Western Union
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-15 days after receive prepayment
    • Product Details
    • Company Profile

    Full Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean room

    Full Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean room

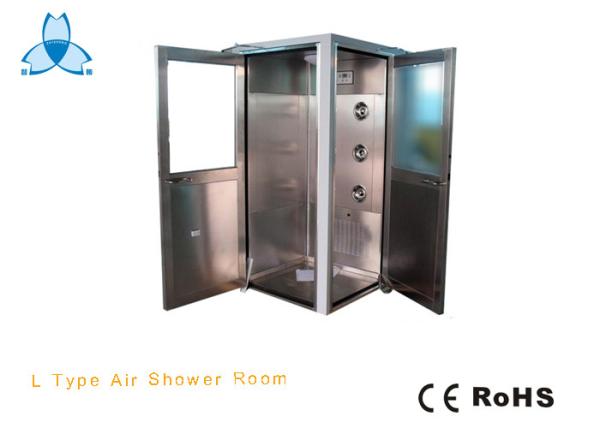

    Stainless steel 304 L Type Clean Room Air Shower for corner installation, with single-leaf stainless steel 304swing door


    L Type New Corner Abnormity Clean Room Air Shower With IC Intelligent Control Panel


    Door Width: L Type 800mm Single Leaf Swing Doors


    Type: Big Top and BigBase


    Description:


    Stainless steel air shower for clean room is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms.


    Personnel dust decontamination & clothes cleaning air shower room is an individual cabinet with high pressure of air to clean up dust and decontaminate clothes of personnel.


    It's a quick and effective way without exposing the personnel, or the work environment to elevated dust levels.


    Once clothes become contaminated, they are a constant source of respirable dust until cleaned.


    Wearing or taking these dusty clothes home to be cleaned also exposes the person washing these clothes to unsafe levels of respirable dust.


    Personnel, without removing the clothing, can step into the specially designed air shower room and within several seconds have almost all visible traces of dust removed from his/her clothing.


    This eliminates their exposure to this dust hazard.


    After personnel complete the cleaning cycle, then they exit into a non-contaminated area without recontaminating themselves or the clean area.


    Its used for the personnel or matters to shower before entering the clean area.


    After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.


    Blowing type: single-side blowing, double-side blowing, three-side blowing.


    Features:


    1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.


    (One door in open state, the other door must in close state. When people enter air shower, the system will


    shower automatically by photoelectric sensor)


    2. Air shower time from 1 to 99 seconds which can be adjustable


    3. Adopt Pre filter and HEPA filter


    4. The door, bottom-board, nozzles are used of stainless steel, good appearance.


    5. When air shower is used to pass cargo, it is without bottom-board.


    Optional accessory:


    1. Manual swing door / automatic sliding door/High speed scroll shutter door


    2. HEPA filter or ULPA filter


    3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304


    4. Common fluorescent lamp / UV Sterilizer lamp


    5. With voice announce


    Parameter:


    Product typeL Type New Corner Abnormity Clean Room Air Shower With IC Intelligent Control Panel
    Material for casingT=1.2MM Full SS304 for External and internal cabinet
    Material for doorsStainless steel 304
    NozzlesStainles steel
    Door leafSingle leaf
    Door typeManual swing door
    Blowing wayTwo-side blowing
    Control systemEnglish intelligent control panel with human voice
    LocksElectric mortise lock
    HEPA filter efficinecy:99.99%
    Pre filterG3
    LightPhilips brand
    Photoelectric sensorOMRON brand
    Shower time0-99s adustable
    Spurt wind speed25-27m/s above
    Power supply380V/50HZ/3PH
    SafeguardLeakage switch and thermal overload relay (Protect people from electric leakage)

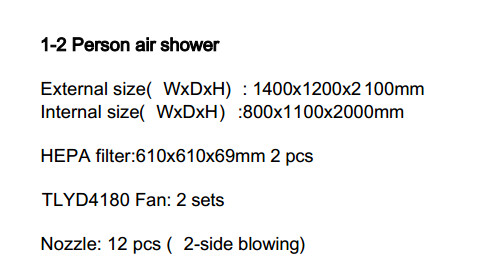

    size and specificaton:


    ProductL Type New Corner Abnormity Clean Room Air Shower With IC Intelligent Control Panel
    ModelASS-1400D-1.2-LS
    External dimensions (mm)W1400*D1200*H2100
    Internal dimensions WxHxD(mm)W800*D1100*H2000
    Doors2 sets of SS single-leaf swing door
    Door closer2 sets (Outside)
    Lock2sets of electric magnetic locks interlocked
    Suitable person1 person
    Nozzles6+6=12(2-side blowing)
    Blower fan2 sets
    Blow power(W)800W
    Weight(kg)Appro.280
    HEPA filter size610x610x69mm
    HEPA filter qty2 PCS
    HEPA filter efficiency99.99% at 0.3um
    Photolectric sensorORMON 1 PCS
    Fluorescent LampPhilips 1x 20W
    Nozzle diameter32mm
    Air shower time0-99 s Adjustable
    Spurt wind speed25-27m/s
    Power SupplyAC380V/50Hz/3Ph
    Control systemMicrocomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor

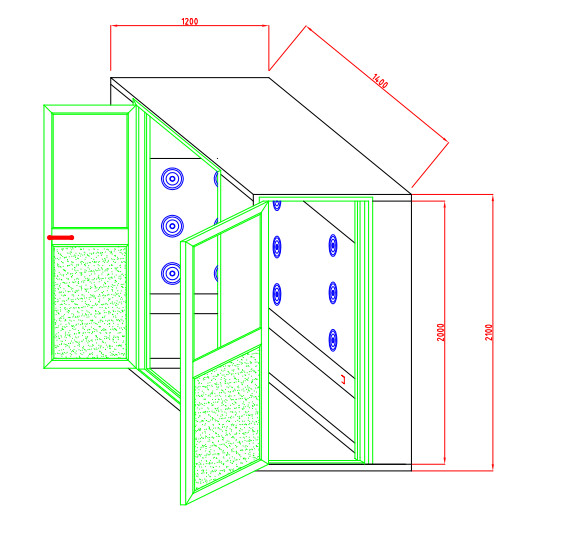

    Air shower Drawing:


    Full Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean roomFull Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean room

    Full Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean room


    Testing in factory:


    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.


    Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing


    Warranty:


    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.


    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.


    Why you choose ZHISHENG Company ?


    Professional service:


    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.


    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.


    After sales service:


    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.


    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.


    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.


    Certificate:

    We have CE and ROHS Certificate for air shower
