Huge Modular Cargo Air Shower tunnel With 3 Sides Nozzles With Auto
PVC Rolling Doors For Robot
Doors: Soft PVC Fast Speed Scrolled Doors
Door Net Width:W2500mm x H2500MM
Air shower
with high speed shutter door.pdf
Description:
Air Shower Tunnels, also known as down flow booths are used to
remove particulate contamination from
personnel, their clothing and personal protective equipment. They
are typically specified for personnel
entering lunch and break areas, clean rooms and sterile rooms.
Modular construction allows assembling the basic floor plan styles
side by side or end to end.
Air Shower Tunnel for clean room is a kind of partial clean equipment with rather
strong universality and
is installed at the partition between the clean and non-clean
rooms. Its used for the personnel or matters
to shower before entering the clean area. After using it, the dust
could effectively be reduced to enter the
clean area and maintain the normal working status.
Capacity - A minimum of 15 seconds retention time is required to clean the
dust off personnel clothes.
As retention time increases, the amount of dust removed also
increases up to a maximum at about 45
seconds. Additional residence time beyond 45 seconds provides
little additional benefit.
Cycle time is adjustable by rotating a simple thumbwheel located in
the electrical cabinet.
Retention time
Can be increased to accommodate large volumes of people by
increasing the length of the air shower
to form a tunnel.
Air Shower Tunnels are formed by assembling multiple modular
sections together.
Features:
1. The control system run automatically by photoelectric sensor,
the two door are electric interlocked.
(One door in open state, the other door must in close state. When
people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel,
good appearance.
5. When air shower is used to pass cargo, it is without
bottom-board.
Optional accessory:
1. Manual swing door / automatic sliding door/High speed scroll
shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated
/ SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
Parameter:
| Product type | Huge Modular Cargo Air Shower tunnel With 3 Sides Nozzles With Auto
PVC Rolling Doors For Robot |
| Material for casing | T=1.2MM Steel with Spray painting for outside, stainless steel 304
for inside, no base |
| Material for doors | Soft PVC |
| Nozzles | Stainles steel |
| Door leaf | SIngle |
| Door type | High Speed Shutter Doors |
| Blowing way | 3-side blowing |
| Control system | English intelligent control panel with human voice and PLC control system |
| Locks | Electric interlocked |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from
electric leakage) |
size and specificaton:
| Product | Huge Modular Cargo Air Shower tunnel With 3 Sides Nozzles With Auto
PVC Rolling Doors For Robot |
| Model | AS-3200D-6.5-SD |
| External dimensions (mm) | W2300*D6500*H2700 |
| Internal dimensions (mm) | W2500*D6500*H2500 |
| Doors | 2 sets of High speed shutter doors |
| Door closer | NONE |
| Lock | electric interlocked |
| Suitable | Both People and Goods |
| Nozzles | 48+48=96PCS(2-side blowing) |
| Blower fan | 24 sets |
| Blow power(W) | 9600W |
| Weight(kg) | Appro.1600 |
| HEPA filter size | 1220x610x90mm |
| HEPA filter qty | 12PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 2 PCS |
| Fluorescent Lamp | Philips 6x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric
interlock, automatical blowing by photoelectric sensor
|
Air shower pictures:

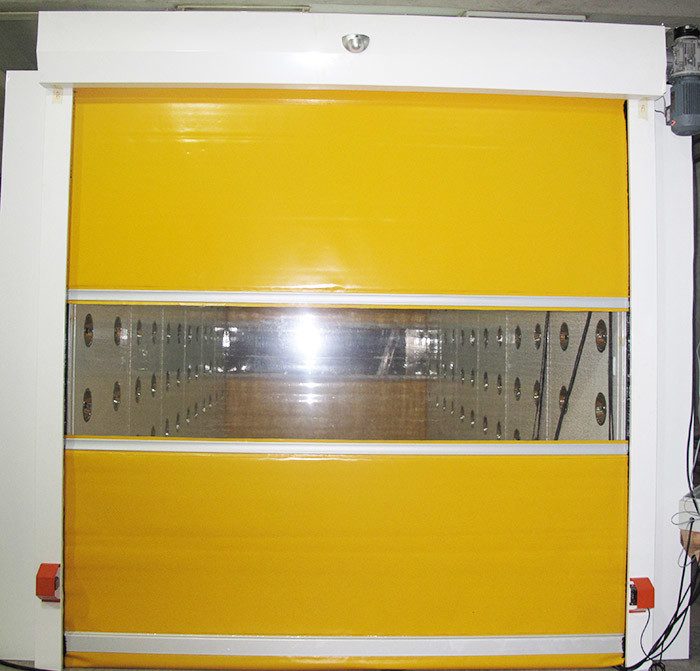

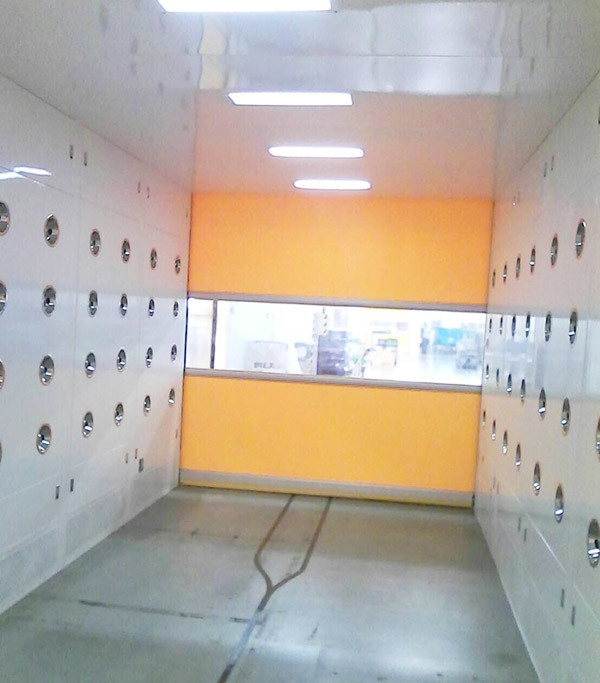

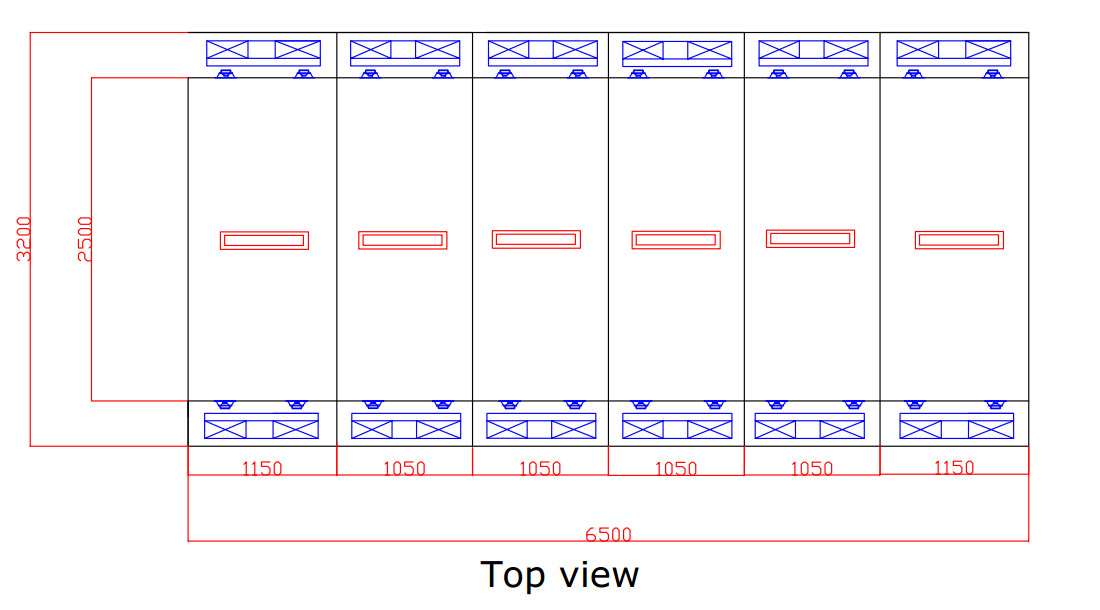

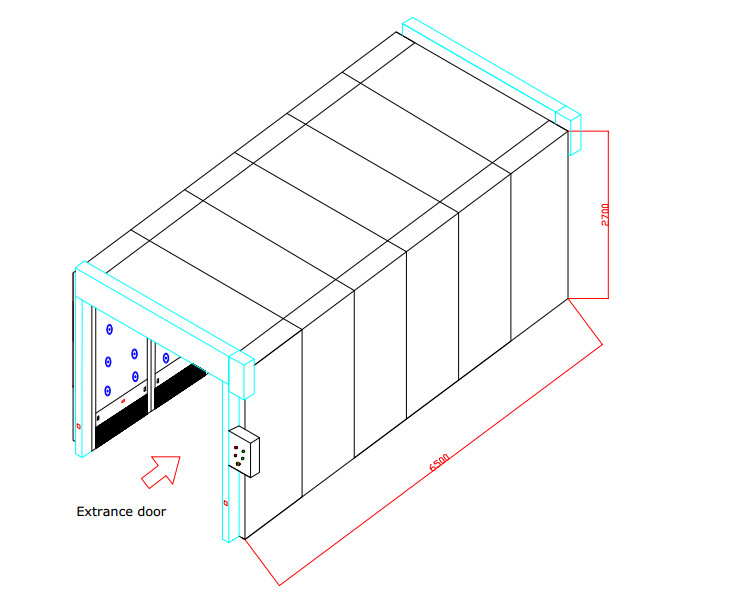

Drawing Of Air Shower Tunnel
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international Standards before
shipment.
Each unit is shipped with a documentation outlining the tests
undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
