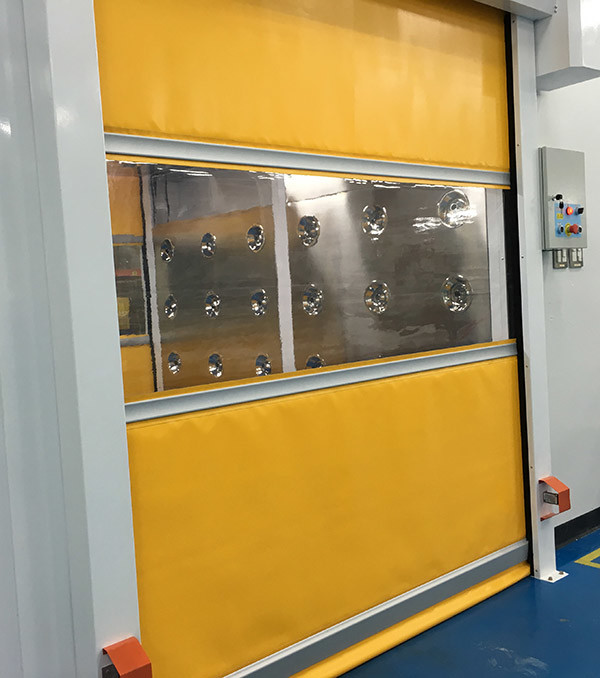

Largo Cargo Air Shower Tunnel With Soft PVC High Speed Shutter
Doors For Cart
Doors: Soft PVC High Speed Shutter Door
Width: 1800mm
Air shower
with high speed shutter door.pdf
Description:
Air Shower Tunnel for clean room is a kind of partial clean equipment with rather
strong universality and
is installed at the partition between the clean and non-clean
rooms.
Air Showers and Tunnels supply high volumes of recirculated, dust
free, air to lift contaminants from
personnel, while they stand, or walk through the specially
constructed chamber.
ZHISHENG air shower is specially designed for the filtration of
air. Our supplied air shower is commonly
used for the decontamination of the people before entering into the
cleanroom facilities.
Our supplied air shower tunnel is available at very cost effective rates.
Blowing type: single-side blowing, double-side blowing, three-side
blowing.
Features:
1. The control system run automatically by photoelectric sensor,
the two door are electric interlocked.
(One door in open state, the other door must in close state. When
people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel,
good appearance.
5. When air shower is used to pass cargo, it is without
bottom-board.
Optional accessory:
1. Manual swing door / automatic sliding door/High speed scroll
shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated
/ SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
Parameter:
| Product type | Largo Cargo Air Shower Tunnel With Soft PVC High Speed Shutter
Doors For Cart |
| Material for casing | T=1.2MM Steel with Spray painting |
| Material for doors | Soft PVC |
| Nozzles | Stainles steel |
| Door leaf | SIngle |
| Door type | High Speed Shutter Doors |
| Blowing way | 3-side blowing |
| Control system | English intelligent control panel with human voice and PLC control system |
| Locks | Electric interlocked |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from
electric leakage) |
size and specificaton:
| Product | Largo Cargo Air Shower Tunnel With Soft PVC High Speed Shutter
Doors For Cart |
| Model | AS-2300T-2.6-SD |
| External dimensions (mm) | W2300*D2600*H2300 |
| Internal dimensions WxHxD(mm) | 1800*D2600*H2000 |
| Doors | 2 sets of High speed shutter doors |
| Door closer | NONE |
| Lock | electric interlocked |
| Suitable | Both People and Goods |
| Nozzles | 18+18+12=48 PCS(3-side blowing) |
| Blower fan | 4 sets |
| Blow power(W) | 4000W |
| Weight(kg) | Appro.780 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 4 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 2 PCS |
| Fluorescent Lamp | Philips 2x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric
interlock, automatical blowing by photoelectric sensor
|
Air shower Details:

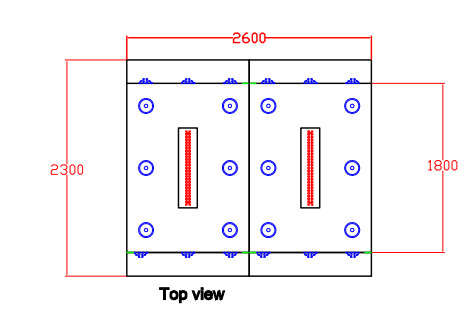

Drawing Of Air Shower Tunnel
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international Standards before
shipment.
Each unit is shipped with a documentation outlining the tests
undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
How often do the HEPA filters need to be replaced?
The frequency at which the HEPA filters need to be replaced depends
on each application
Test when the filters need to be replaced if air flow at the air
nozzles reduces significantly.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
