3 Modulars Automatic Control Fast Rolling Shutter Door Cleanroom Cargo Air Shower For Large Goods

Doors: Soft PVC Fast Speed Scrolled Doors

Door Net Width: 1800mm

Air shower with high speed shutter door.pdf

Description:

Air Shower Tunnel for clean room is a kind of partial clean equipment with rather strong universality and

is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters

to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the

clean area and maintain the normal working status.

We design, fabricate and install air shower for clean room personnel.

These clean room air shower tunnels are especially used in different kinds of laboratories, pharmaceutical industries and animal facilities;

where they act as entry systems that decontaminate personnel before entering into clean environment.

Our engineering team carefully designs and configures an air shower that meets your specific working conditions.

Tunnel and conveyor type units are also constructed for carts, equipment and cargo etc.

We in-house construct air shower; therefore, we offer our customers facility to order according to their specific requirements.

Our air shower units are available in different design configurations and material of construction

. Our air shower prices are competitive, quality is unmatched and each unit is covered with excellent warranty terms.

Air Shower Tunnel

Where 5 or more person occupancy per cycle is required air shower tunnel comes into effect.

Air shower tunnels are designed with standard widths 48" and 60". Customized units are also available with maximum length of 30 ft.

Applications

Air showers are one of most demanding arrangements in most of the industries; where, removing fine particles attached to persons and products is mandatory.

Such industries are: animal facilities, pharmaceutical, chemical research lab, electronics and semi-conductor, optical and aerospace etc.

Design and Construction

Air showers are designed in various configurations such as Entry exit type, L type entry exit, one way entry and two way exit type and tunnel and conveyor type etc. If you are unsure whi

Features:

1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.

(One door in open state, the other door must in close state. When people enter air shower, the system will

shower automatically by photoelectric sensor)

2. Air shower time from 1 to 99 seconds which can be adjustable

3. Adopt Pre filter and HEPA filter

4. The door, bottom-board, nozzles are used of stainless steel, good appearance.

5. When air shower is used to pass cargo, it is without bottom-board.

Optional accessory:

1. Manual swing door / automatic sliding door/High speed scroll shutter door

2. HEPA filter or ULPA filter

3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304

4. Common fluorescent lamp / UV Sterilizer lamp

5. With voice announce

Parameter:

size and specificaton:

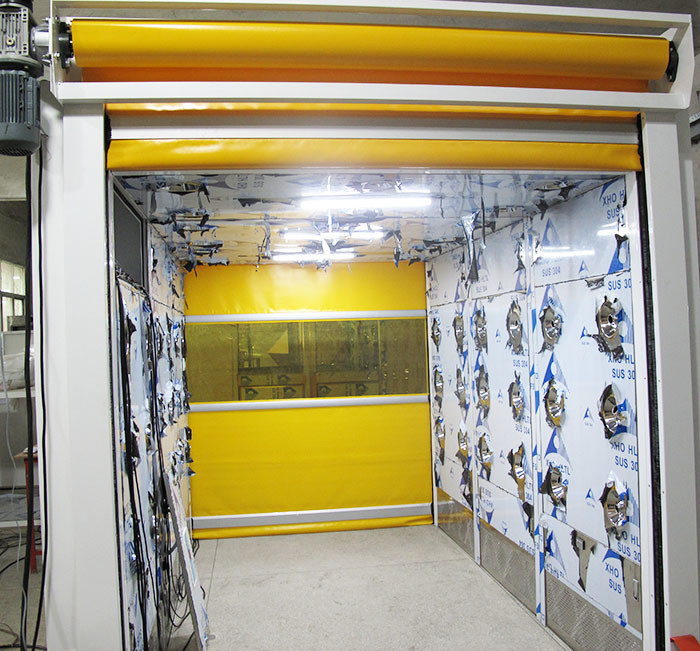

Air shower pictures:

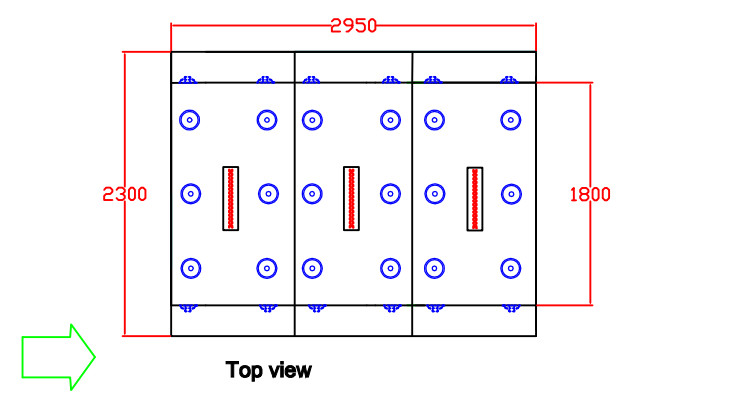

Drawing Of Air Shower Tunnel

Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.

Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.
