Hide Double-leaf Stainless steel auto sliding doors Large Air
Shower Tunnel for materials for class 100 clean room
Cleanroom Cargo Air Shower
Stainless Steel Inside Cargo Air Shower Tunnel For Clean Room With
Automatic Doors
Air shower
for materials.pdf
Doors:Automatic Double Leaf Sliding Doors
Door Size: 1800mm x2100mm
Description of cleanroom cargo air shower:
Cargo Air Shower is self-contained units, installed at the entrance
of a clean room and other controlled environment chambers
for minimizing the entry of dust particles and other particulate
matters into the working area.
Air Shower is designed to provide and maintain clean room
conditions for research applications and particle sensitive
manufacturing processes.
These energy efficient units are fully self-contained and well
equipped to provide and sustain a highly sterile working
environment.
Our versatile Air Showers are quite adept at controlling the level
of contamination for particle sensitive processes
such as disc drive and semiconductor manufacturing, pharmaceutical
drug testing and for research applications
involving molecular biology and biochemical experiments, cell and
tissue culture experiments etc.
They are available in both standard and customized designs to suit
the requirements of the industry.
The entire air shower assembly is HEPA/ULPA filtered, pre-wired and
tested, ready to use with a simple plug-in,
therefore providing an unmatched ease of operation. Moreover, the
use of high quality construction materials
ensures unparalleled manufacturing quality, whereas the highly
efficient blowers and motors ensure long lasting dependable
results.
Parameter of Cleanroom Cargo Air Shower:
| Product type | Stainless Steel Inside Cargo Air Shower Tunnel For Clean Room With
Automatic Doors |
| Material for casing | T=1.2MM Power coated steel for outside, SS304 for inside |
| Material for doors | Stainless steel 304 |
| Nozzles | Stainles steel |
| Door leaf | Doubleleaf |
| Door type | Sliding doors |
| Blowing way | 3-side blowing |
| Control system | English intelligent control panel with human voice |
| Locks | Electric interlocked |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from
electric leakage) |
Size and specificaton of Cleanroom Cargo Air Shower:
| Product | Stainless Steel Inside Cargo Air Shower Tunnel For Clean Room With
Automatic Doors |
| Model | AS-3800T-2.6-AD |
| External dimensions (mm) | W3800*D2600*H2300MM |
| Internal dimensions mm | W1800*D260*H2100MM |
| Doors | 2 sets of SS double-leaf sliding doors |
| Door closer | NONE |
| Lock | electric interlocked |
| Suitable | People and Goods |
| Nozzles | 16+16+18=54 PCS(3-side blowing) |
| Blower fan | 6 sets |
| Blow power(W) | 2400W |
| Weight(kg) | Appro.1000 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 6 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 2 PCS |
| Fluorescent Lamp | Philips 3x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric
interlock, automatical blowing by photoelectric sensor
|
Features of Cleanroom cargo air shower
1. The control system run automatically by photoelectric sensor,
the two door are electric interlocked.
(One door in open state, the other door must in close state. When
people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel,
good appearance.
5. When air shower is used to pass cargo, it is without
bottom-board.
Optional accessory of Cleanroom Cargo Air Shower
1. Manual swing door / automatic sliding door/High speed scroll
shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated
/ SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce

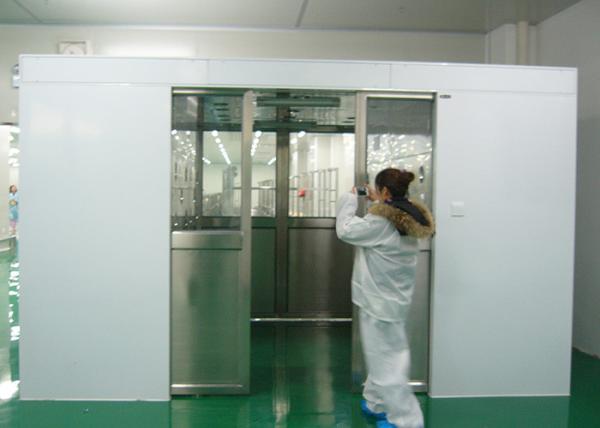

Photos of Cleanroom Cargo Air Shower
Drawing of Air Shower Tunnel
OTHER TYPES OF AIR SHOWER
Clean Room
Air shower
Stainless
Steel Air Shower
Air
Shower Tunnel
Air
Shower With High Speed Shutter Doors
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international Standards before
shipment.
Each unit is shipped with a documentation outlining the tests
undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
