Single Leaf Stainless steel 304 Auto Sliding Doors Air Shower
tunnel for materials in clean room
Cart Air Shower Tunnel With Width 1200MM Single Leaf Sliding Doors
For Material And Goods
Description:
Air Shower Tunnel are classifieds for human and material entries.
It is the most effective for self-controlled and clearing off dust
particles from clean room personnel to reduce the contamination of
products and clean room equipments.
The air shower is mounted at entrance to clean room and other
sterilized area.
It is used in effectively manner for purification by high
efficiency of (HEPA) filtered air reduces the contamination.
The dirtied air is purified and re-circulates through pre-filters
within the unit.
The Air shower system is an auto controlled interlocking systems
for entrance, such that the entry and exit doors are electronically
interlocked and photoelectric sensor suited.
Air shower systems are made (Constructed) from SS304, GI powder
coated, EPOXY painted.
The main function of the air shower is to purify the dust air, such
that it used HEPA (0.3micron) and Pre filters.
Disposable / washable pre-filters with 90% arrestance of dust air
to extend the life of the main HEPA filter. It is designed in such
a way to ensure that the lowest noise and vibration level is <
60 db.
Air Shower Specifications
Filter: Twelve inch HEPA (High Efficiency Particulate Air) type, PSL
challenged, zero probed. Minimum efficiency of 99.99% at .3
microns.
Pre-filter: One inch bonded polyfiber media minimizes surface-loading. Low
wall return to HEPA filter atop unit. Quick release grille.
Blowing type: single-side blowing, double-side blowing, three-side
blowing.
Operation Instruction
1.Put air shower on the correct location, connect the power wires
of air shower with the power wires,
There are FIVE lines: 3*Live line, 1*Null line and 1*Earth line.
The power supply is AC380V/50HZ/3 phases.
2. In order to make sure air shower to work normally and the
cleanliness of workshop, please kindly use air shower according to
the following correct method.
2.1 Please check if there are any people in air shower before you
enter it. When air shower is working entrance door and exit door
are electronic interlocked, it is forbidden to open the door at
this moment.
2.2 Put hand toward to Open switch, the entrance sliding door will
open , enter air shower, then entrance sliding door will be close
automatically, photoelectric sensor is reacted by people or goods,
blower fan will be
blowing automatically (The air shower time is set 15seconds at
factory, it is forbidden to change the air shower time during
blowing), after blowing, exit sliding door open automatically, go
out air shower,
then exit sliding door will be close automatically.
Attentions:
1. The power of this equipment requires 380V/50HZ/3PH. If the
airflow is very low when using the first time, the reason is fan
reversal, you should exchange the phase.
This equipment is electronic interlocked, while one door in open
state, or air shower time, please don’t open the other doors, or
the electronic lock will be broken.
2. The terminals on the circuit board, L is the connection of Live
line, N is the connection of Null line, PE is the connection of
Earth Line.
3. In order to make sure the efficiency of blowing and cleanliness,
in general, primary filters is changed once half year and HEPA
filter a year.
Parameter:
| Product type | Cart Air Shower Tunnel With Width 1200MM Single Leaf Sliding Doors
For Material And Goods |
| Material for casing | T=1.2MM Power coated steel for outside, SS304 for inside |
| Material for doors | Stainless steel 304 |
| Nozzles | Stainles steel |
| Door leaf | single leaf |
| Door type | Sliding doors |
| Blowing way | 2-side blowing |
| Control system | English intelligent control panel with human voice |
| Locks | Electric interlocked |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from
electric leakage) |
Size and specificaton:
| Product | Cart Air Shower Tunnel With Width 1200MM Single Leaf Sliding Doors
For Material And Goods |
| Model | AS-1800D-2-AD |
| External dimensions (mm) | W1800*D2000*H2150MM |
| Internal dimensions mm | W1200*D2000*H2000MM |
| Doors | 2 sets of SS Single-leaf sliding doors |
| Door closer | NONE |
| Lock | electric interlocked |
| Suitable | People and Goods |
| Nozzles | 12+12=24PCS(2-side blowing) |
| Blower fan | 4sets |
| Blow power(W) | 1600W |
| Weight(kg) | Appro.480 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 4 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | Philips 2x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric
interlock, automatical blowing by photoelectric sensor
|
Pictures Of Air Shower Tunnels:

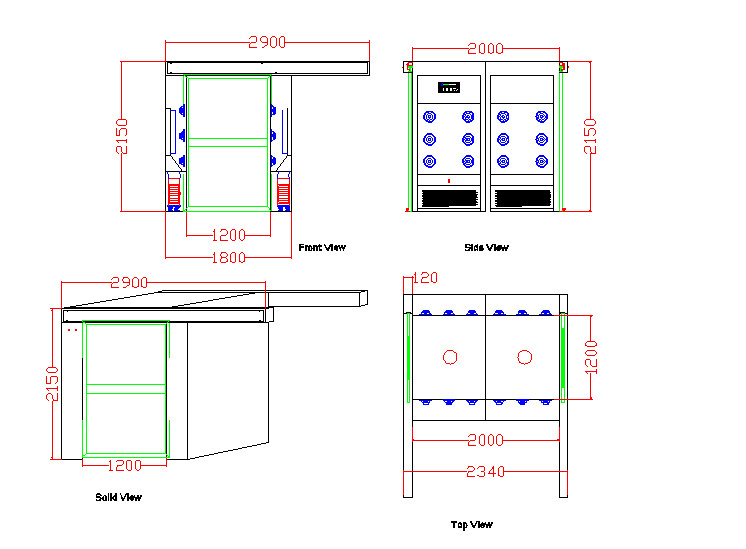

Drawing of Air Shower Tunnel
Can custom air showers be manufactured?
We offers both standard and custom air showers. Please contact us
for more information.
Is it possible to alter the settings on the air shower?
Our air showers allow the operator flexibility to program numerous
settings using an easy-to-use touch-screen control panel. You can
easily set cycle operation times, entrance/exit delays, when the
lights turn off/on, and more.
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international Standards before
shipment.
Each unit is shipped with a documentation outlining the tests
undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
