Width 1000mm Single leaf Swing Doors Stainless Steel Air Shower
Room With Three Blowing
Door Width: 1000mm Single Leaf Swing Doors
Type: Big Top and Small Base
Air
shower.pdf
Description:
Stainless steel air shower for clean room is a kind of partial clean equipment with rather
strong universality and is installed at the partition between the
clean and non-clean rooms.
Its used for the personnel or matters to shower before entering the
clean area.
After using it, the dust could effectively be reduced to enter the
clean area and maintain the normal working status.
Blowing type: single-side blowing, double-side blowing, three-side
blowing.
Features:
1. Photoelectric sensor, automatic blowing.
2. Designed with circulation wind to ensure the cleanness of shower
area under non-shower status.
3. Double doors with electric interlock.
4. LED display with adjustable blowing time (0-99 min).
5. HEPA Filter, Class 100 cleanness.
Optional accessory:
1. Manual swing door / automatic sliding door/High speed scroll
shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated
/ SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
Parameter:
| Product type | Width 1000mm Single leaf Swing Doors Stainless Steel Air Shower
Room With Three Blowing |
| Material for casing | T=1.2MM Full SS304 for External and internal cabinet |
| Material for doors | Stainless steel 304 |
| Nozzles | Stainles steel |
| Door leaf | Single leaf |
| Door type | Manual swing door |
| Blowing way | Three-side blowing |
| Control system | English intelligent control panel with human voice |
| Locks | Electric mortise lock |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | 1*8W |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from
electric leakage) |
size and specificaton:
| Product | Width 1000mm Single leaf Swing Doors Stainless Steel Air Shower
Room With Three Blowing |
| Model | AS S-1500D-2.3 |
| External dimensions (mm) | W1500*D2300*H2100 |
| Internal dimensions WxHxD(mm) | W1000*D2200*H1960 |
| Doors | 2 sets of SS single-leaf swing door |
| Big Door closer | 2 sets (Outside) |
| Lock | 2sets of electric magnetic locks interlocked |
| Suitable person | 1 person |
| Nozzles | 18+18+12=48(3-side blowing) |
| Blower fan | 4 sets |
| Blow power(W) | 4000W |
| Weight(kg) | Appro.480 |
| HEPA filter size | 610x610x69mm |
| HEPA filter qty | 4 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | 2x 8W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 25-27m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric
interlock, automatical blowing by photoelectric sensor
|
Circuit Board Of Air Shower

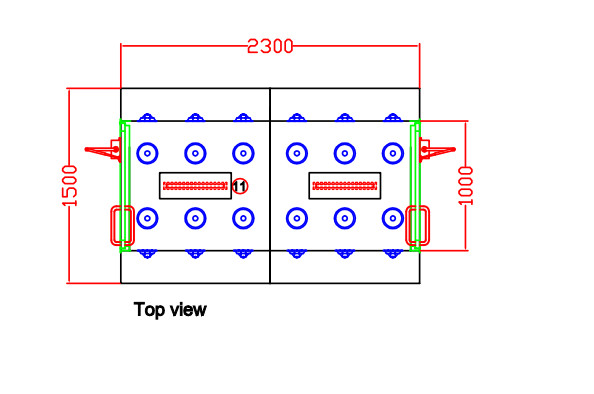

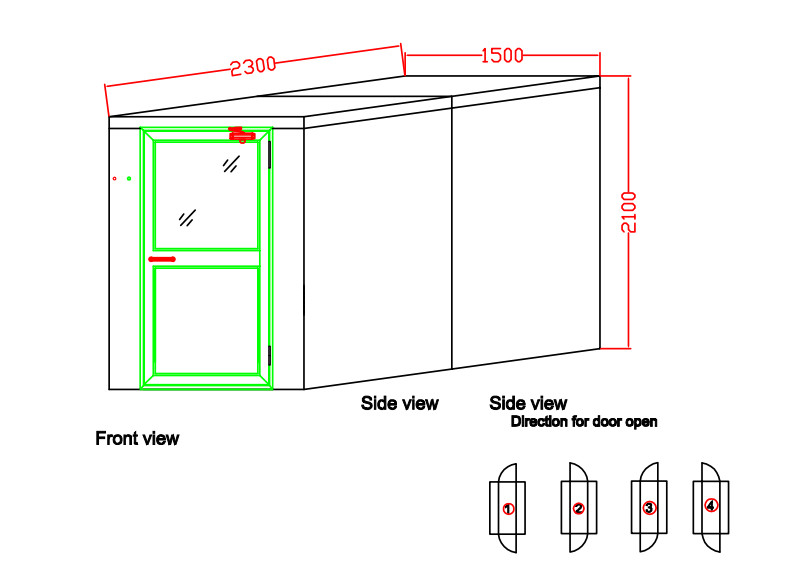

Air shower Drawing:
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international Standards before
shipment.
Each unit is shipped with a documentation outlining the tests
undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
