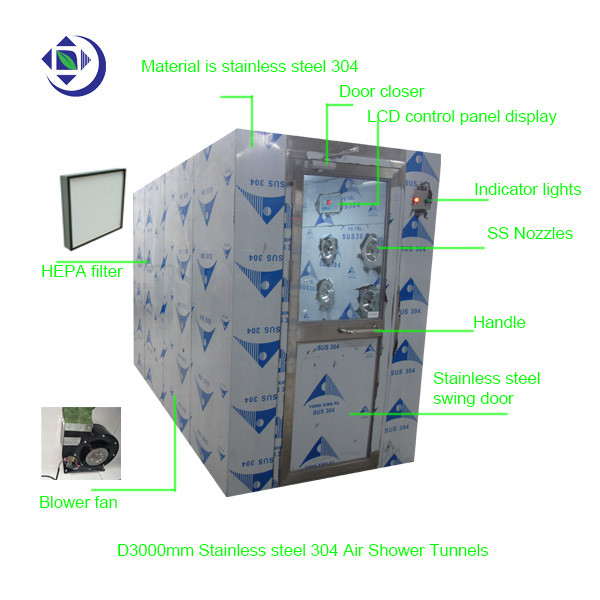

Depth 3000mm Stainless Steel Personal Air Shower With Manual Doors
For Six People
Door Width: 800mm Single Leaf Swing Doors
Type: Small Top and Small Base
Air
shower.pdf
Description:
Stainless steel Air shower is a necessary passage for person or
goods entering into the clean room in order to minimize the amount
of particulate contaminants.
Personnel move through the air shower while particulate
contaminants are blew off by the clean high velocity.
The high air velocity of 15-20m/s ensures the efficiency.
Contaminated air is then taken in through the base of the unit,
filtered and recirculated into the chamber.
Blowing type: single-side blowing, double-side blowing, three-side
blowing.
Features:
1. The control system run automatically by photoelectric sensor,
the two door are electric interlocked.
(One door in open state, the other door must in close state. When
people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel,
good appearance.
5. When air shower is used to pass cargo, it is without
bottom-board.
Parameter:
| Product type | Depth 3000mm Stainless Steel Personal Air Shower With Manual Doors
For Six People |
| Material for casing | T=1.2MM Full SS304 for External and internal cabinet |
| Material for doors | Stainless steel 304 |
| Nozzles | Stainles steel |
| Door leaf | Single leaf |
| Door type | Manual swing door |
| Blowing way | Three-side blowing |
| Control system | English intelligent control panel with human voice |
| Locks | Electric mortise lock |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | 1*8W |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from
electric leakage) |
size and specificaton:
| Product | Depth 3000mm Stainless Steel Personal Air Shower With Manual Doors
For Six People |
| Model | AS S-1400D-3 |
| External dimensions (mm) | W1400*D3000*H2050 |
| Internal dimensions WxHxD(mm) | W800*D2900*H1920 |
| Doors | 2 sets of SS single-leaf swing door |
| Door closer | 2 sets (Outside) |
| Lock | 2sets of electric magnetic locks interlocked |
| Suitable person | 1 person |
| Nozzles | 18+18=36(2-side blowing) |
| Blower fan | 4 sets |
| Blow power(W) | 4000W |
| Weight(kg) | Appro.560 |
| HEPA filter size | 610x610x69mm |
| HEPA filter qty | 4 PCS |
| HEPA filter efficiency | 99.99% at 0.3um |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | 2x 8W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 25-27m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric
interlock, automatical blowing by photoelectric sensor
|
Circuit Board Of Air Shower
Air shower Drawing:
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international Standards before
shipment.
Each unit is shipped with a documentation outlining the tests
undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
