PLC Control Stainless Steel Clean Room Air Shower Room With Alcohol
Spring Machine

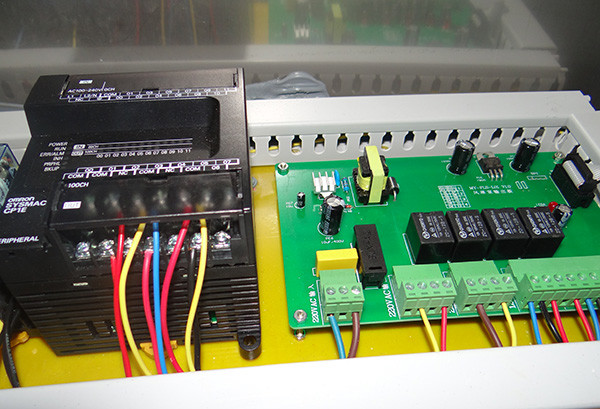

Control System: OMRON PLC
Air
shower.pdf
Clean Room Air shower is used clean workshops and clean rooms, for
not only removing dust from the surface of people and goods,
but also playing as a role of air lock valve to prevent unpurified
air from flowing into the clean area.
The air shower can be used with all supporting clean room and clean
workshops.
As air shower , installed in the clean room entrance and used to
remove the dust on personnel or goods entering through it,
The clean room air shower, which is composed of case, fan(s),
filter(s), nozzles and electric control system, is
photoelectrically controlled, electronically interlocked and
automatic blowing.
The materials for case can be chosen from all cold rolled steel
plate with powder coated, stainless steel inside and cold rolled
steel plate with powder coated outside, and all stainless steel
(SS201 or SS304; Thickness: 1.0 mm or 1.2 mm). The air shower time
is adjustable from 1-99 seconds, compact and sound in structure.
The air purifier is high efficiency .An air shower passage can be
made up of several air showers.
Features:
1. Photoelectric sensor, automatic blow
2. Electronically interlocked with double stainless door
3. The air shower with stainless nozzles
4. The air shower with audio system
5. The air shower with Auto, Stop, Manual, Emergency Stop function
keys
6. The air shower with an Emergency Stop push button: Will override
the operating cycle to release the door locks immediately
7.we are air shower manufacter ,so we can ensure the lower price
and high quality.
8. we can supply the complete air shower room,and you can use it
asap once received.
Applications:
Food factory, Semiconductor Factory, Microelectronics Factory,
Biological Pharmaceutical Factory, etc.
Features:
| Product type | PLC Control Stainless Steel Clean Room Air Shower Room With Alcohol
Spring Machine |
| Material for casing | T=1.2 Stainless steel 304 for Outside and inside casing and base |
| Material for doors | Stainless steel 304 with half temper glass |
| Nozzles | Stainles steel |
| Door leaf | Single leaf |
| Door type | Manual swing door |
| Blowing way | 3-side blowing, |
| Control system | OMRON PLC with English IC intelligent control panel with human
voice |
| Locks | Electric mortise lock |
| HEPA filter efficinecy: | H13 |
| Pre filter | G3 |
| Light | brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s above |
| Power supply | AC220V/50HZ/1PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from
electric leakage) |
Standar size and specificaton:
| Product | PLC Control Stainless Steel Clean Room Air Shower Room With Alcohol
Spring Machine |
| Model | AS-1500D-1 |
| External dimensions (mm) | W1500*D1000*H2140MM |
| Internal dimensions WxHxD(mm) | W800*D910*H2000MM |
| Doors | 2 sets of SS single-leaf swing door |
| Door closer | 2 sets (Outside) |
| Lock | 2sets of electric locks interlocked |
| Suitable person | Three person |
| Nozzles | 6+6=12PCS(2-side blowing ) |
| Blower fan | 2 sets |
| Blow power(W) | 800W |
| Weight(kg) | Appro.280 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 2 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | 1x 8W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric
interlock, automatical blowing by photoelectric sensor |
Air Shower Details:
Air Shower Drawing:
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international Standards before
shipment. Each unit is shipped with a documentation outlining the
tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
