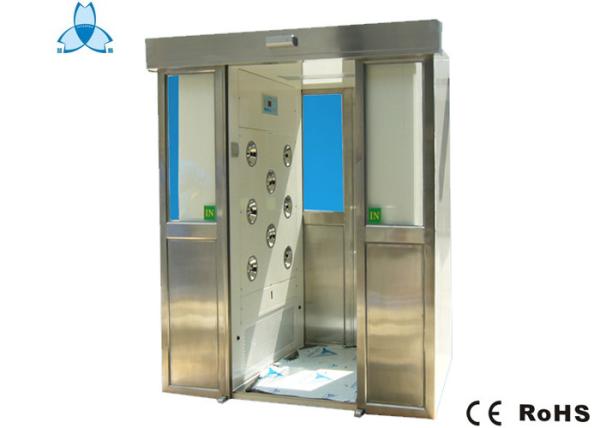

Automatic Clean Room Air Shower With Sliding Door For 1 Person
Air
shower.pdf
Specifications
Air shower:
1) Automatic sliding doors will be open and close automatically.
2) Automatic blowing
3) 100 class cleanroom
4) Wind speed:22-25/s
With Automatic sliding doors
Description:
Air shower is mainly composed of cabinet, fans, filters, nozzle,
electric control system of five parts. Main body is made by 1.2mm
cold plate coating, stainless steel for the base.
Automatic air shower room adopts photoelectric control, electric
interlock, automatic blow. Air shower time is adjustable, compact
structure, easy to use.
the operator is maximum dust source in working space , Air shower
room, a purifying equipment being able to clean the dust adhering
to the surface of human body and articles,
preventing the unclean air invade into the clean room.
To meet the cleanliness requirement of clean room with the help of
air-conditioning system in the clean room.
Features:
1. The control system: LCD control panel with human voice,
electronic interlock and automatic blowing
2. Air shower time from 0 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The case adopts high quality cold rolled steel with powder
coated or stainless steel
5. The door, bottom-board, nozzles are used of stainless steel,
good appearance.
6. When air shower is used to pass cargo, it is without
bottom-board.
Optional accessory:
1. Double-leaf or single-leaf automatic-sliding doors by
photoelectric sensor (when person enter air shower, the door will
open automatically, go out air shower,
the door will be closed automatically.)
2. HEPA filter or ULPA filter
3. The case is used of cold-rolled steel plate / all stainless
steel air shower / just stainless steel inside
4. Common fluorescent lamp / UV Sterilizer lamp
Technical Parameter:
| Product Name | Automatic Clean Room Air Shower With Sliding Door For 1 Person |
| Material for Cabinet | Power coated for mainbody, stainles steel for bottom |
| Material for Doors | Stainless steel frame with half glass |
| Nozzles | Stainless steel |
| Door leaf | Double-leaf |
| Door type | W800mm Automatic sliding doors |
| Blowing way | 2- side blowing |
| Control system | English IC intelligent control panel with English human voice |
| Locks | Electric Interlocked |
| HEPA filter efficinecy: | H13 (EN1822) |
| Pre filter | G3 (EN799) |
| Light | 1x8W |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 20-25m/s above |
| Power supply | AC 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from
electric leakage) |
Size and specificaton:
| Product | Automatic Clean Room Air Shower With Sliding Door For 1 Person |
| Model | AS-1400D-1.2-AD |
| External dimensions (mm) | W1400*D1200*H2050MM |
| Internal dimensions WxHxD(mm) | W800*D1200*H1920MM |
| Doors | 2 sets of double-leaf sliding door |
| Door closer | None |
| Lock | 2sets of electric locks interlocked |
| Suitable person | one person |
| Nozzles | 8+8=16PCS (2-side blowing) |
| Blower fan | 2 sets |
| Blow power(W) | 800W |
| Weight(kg) | Appro.480 |
| HEPA filter size | 610x610x69mm |
| HEPA filter QTY | 2 PCS |
| HEPA filter efficiency | 99.99% at 0.3um |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | 1x 8W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 20-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control circuit board
|
Pictures of Air Shower
Packing: Plywood Case
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international
Standards before shipment. Each unit is shipped with a
documentation outlining the tests undertaken and
the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Air Shower Questions:
The below questions will help establish what air shower you need:
1. Is the air shower being used to enter a clean room environment?
2. Is the air shower being used to exit a contaminated enviroment?
3. Will the air shower be washed down or cleaned with harsh
chemicals?
4. Will the air shower be used in a food processing facility?
5. How Mnay people will be going through the air shower at a given
priod of time?
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Our Services
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
