    Automatic Doors Clean Room Air Shower

    Ask Lasest Price
    Brand Name : ZHISHENG
    Model Number : AS-1500D-1.2-AD
    Certification : ISO 9001/CE/ROHS
    Payment Terms : T/T, Western Union
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : about 15 days upon receipt of deposit
    • Product Details
    • Company Profile

    Automatic Doors Clean Room Air Shower

    Automatic Double-leaf Sliding Doors Clean Room Personal Air Shower To Remove The Dust From Person and Materials


    Width 800mm Stainless steel Double-leaf Swing Doors


    Small top and small base


    Description:


    Air shower is a frequently used equipment in clean room. It removes dust particles on the surface of the goods effectively to so that dusts will not be brought in to the clean room by goods.


    Meanwhile, air shower works as an air lock which separates clean area and unclean area to keep the pressure in the clean room steady.


    Application: Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.


    Features:


    1. Controlled by English IC control panel, electric interlocked, automatically blowing by photoelectric sensor.


    2. Showing time canb e adjusted from 0-99 seconds ont the display of control panel, it is easy to control it.


    3. Base and nozzles are used of stainless steel


    4,99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.


    5. Spurt wind speed: 22-25 m/s


    Technical Parameter:


    Product typeAutomatic Double-leaf Sliding Doors Clean Room Personal Air Shower To Remove The Dust From Person and Materials
    Material for casingCold rolled steel with powder coated for outside and outside cabinets
    Material for doorsStainless steel Double-leaf swing doors
    NozzlesStainless steel
    Door leafDouble-leaf
    Door typeW800mm Automatic sliding doors
    Blowing way2- side blowing
    Control systemEnglish IC intelligent control panel with English human voice
    LocksElectric lock
    HEPA filter efficinecy:99.99% at 0.3um
    Pre filterG3
    LightPhilips brand
    Photoelectric sensorOMRON brand
    Shower time0-99s adustable
    Spurt wind speed20-25m/s above
    Power supplyAC 380V/50HZ/3PH
    SafeguardLeakage switch and thermal overload relay (Protect people from electric leakage)

    Size and specificaton:


    ProductAutomatic Double-leaf Sliding Doors Clean Room Personal Air Shower To Remove The Dust From Person and Materials
    ModelAS-1500D-1.2-AD
    External dimensions (mm)W1500*D1200*H2170MM
    Internal dimensions WxHxD(mm)W800*D1200*H1920MM
    Doors2sets of Double-leaf sliding door
    Door closerNone
    Lock2sets of electric locks interlocked
    Suitable person1-2 persons
    Nozzles8+8=16 PCS(2-side blowing )
    Blower fan2 sets
    Blow power(W)800W
    Weight(kg)Appro.320
    HEPA filter size915x610x69mm
    HEPA filter qty2 PCS
    HEPA filter efficiency99.99% at 0.3um
    Photolectric sensorORMON 1 PCS
    Fluorescent LampPhilips 1x 20W
    Nozzle diameter32mm
    Air shower time0-99 s Adjustable
    Spurt wind speed25-27m/s
    Power SupplyAC380V/50Hz/3Ph
    Control systemMicrocomputer control circuit board

    Optional: 1. Emergency stop buttons


    2. Ionizer Nozzle


    3. Interphone

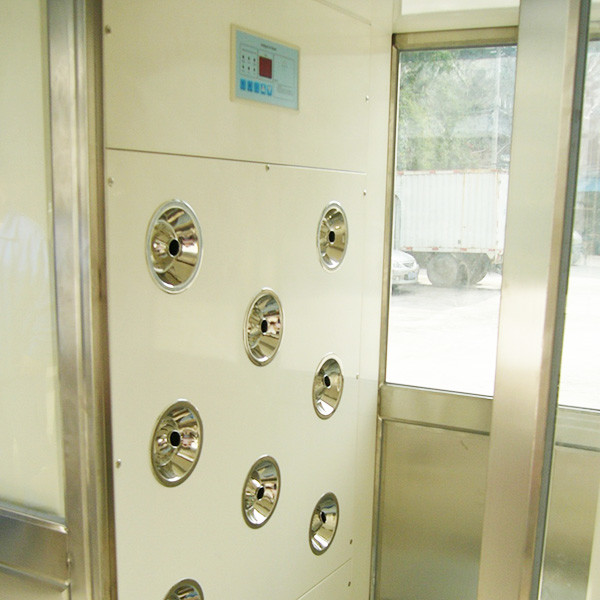

    Air Shower Details:


    Automatic Doors Clean Room Air Shower

    Automatic Doors Clean Room Air Shower

    Automatic Doors Clean Room Air Shower

    Automatic Doors Clean Room Air Shower


    Drawing:


    Automatic Doors Clean Room Air ShowerAutomatic Doors Clean Room Air ShowerAutomatic Doors Clean Room Air Shower


    Packing: Plywood Case

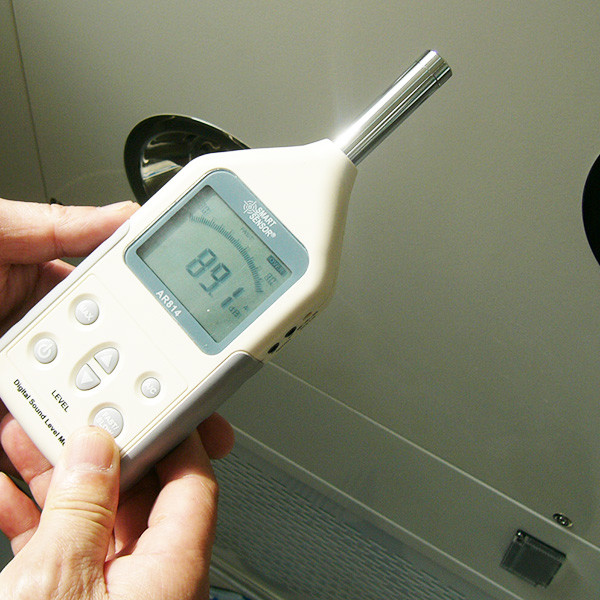

    Testing in factory:


    All of equipment will be individually tested for safety and performance in accordance with international


    Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and


    the units individual results for each unit.


    Testing before shipment:


    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing


    Warranty:


    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.


    Replacement parts:


    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.


    Air Shower Questions:


    The below questions will help establish what air shower you need:


    1. Is the air shower being used to enter a clean room environment?


    2. Is the air shower being used to exit a contaminated enviroment?


    3. Will the air shower be washed down or cleaned with harsh chemicals?


    4. Will the air shower be used in a food processing facility?


    5. How Mnay people will be going through the air shower at a given priod of time?


    Why you choose ZHISHENG Company ?


    Professional service:


    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.


    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.


    After sales service:


    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.


    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.


    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.


    Certificate:

    We have CE and ROHS Certificate for air shower
