    Spray Coating Stainless Steel Clean Room With Manual SS Swing Doors

    Ask Lasest Price
    Brand Name : Zhisheng
    Model Number : AS-1300D-1
    Certification : ISO 9001/CE/ROHS
    Price :
    Payment Terms : T/T, Western Union
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : about 15 days upon receipt of deposit
    • Product Details
    • Company Profile

    Spray Coating Stainless Steel Clean Room With Manual SS Swing Doors

    Outside Spray Coating Inside Stainless Steel Air Shower With SS Swing Door

    Air shower.pdf


    Description:


    Air shower is a necessary air purifying equipment for personnel entering the clean room, it's used for clearing off dust and dirt particles from bodies of cleanroom personnel to minimize contamination of equipment or products, the pollutants carried by personnel can affect factory equipment and product quality, besides, it can also serve as an airlock room to prevent the polluted air from entering into the clean room.


    Features of Zhisheng air shower

    1. Automatic infrared induction blowing
    2. English voice prompt
    3. Electronic interlock
    4. 0~60S adjustable shower time
    5. Blowing way: single side blowing, double sides blowing, three sides blowing or top blowing
    6. Photoelectronic sensor: Omron brand
    7. Equipped with built-in LED light and rotatable spraying nozzles


    Features:


    Product typeAir shower with SS Swing door
    Material for casingT=1.2mm cold rolled steel with powder coated for outside, T=1.2mm stainless steel 201 for inside
    Material for doorsStainless steel 201
    Nozzlesstainless steel
    Door leafSingle leaf
    Door typeManual swing door
    Blowing way2-side blowing
    Control systemEnglish intelligent control panel with human voice
    LocksElectric mortise lock
    HEPA filter efficinecy:H13
    Pre filterG3
    LightPhilipines brand
    Photoelectric sensorOMRON brand
    Shower timeadustable 0-60s
    Spurt wind speed22-25m/s above
    Power supply220V/50HZ/1PH
    SafeguardLeakage switch and thermal overload relay (Protect people from electric leakage)

    Size and specificaton:


    ProductAir Shower with SS Swing Doors
    ModelAS-1300D-1
    External dimensions (mm)W1300*D1000*H2050MM
    Internal dimensions WxHxD(mm)W800*D900*H1920MM
    Doors2 sets of swing door
    Door closer2 sets (outside)
    Lock2 sets of electric locks interlocked
    Suitable personone person
    Nozzles12 (two-side blowing)
    Blower fan1 set
    Blow power(W)1000W
    Weight(kg)Appro.250
    HEPA filter size610x610x69mm
    HEPA filter qty1 PCS
    HEPA filter efficiency99.99% @ 0.3um
    Photolectric sensor1 PCS
    Nozzle diameter32mm
    Air shower time0-60 s Adjustable
    Spurt wind speed20~25m/s
    Power SupplyAC220V/50Hz/1Ph
    Control systemMicrocomputer control circuit board

    Note: Customer's size and specification can be acceptable.

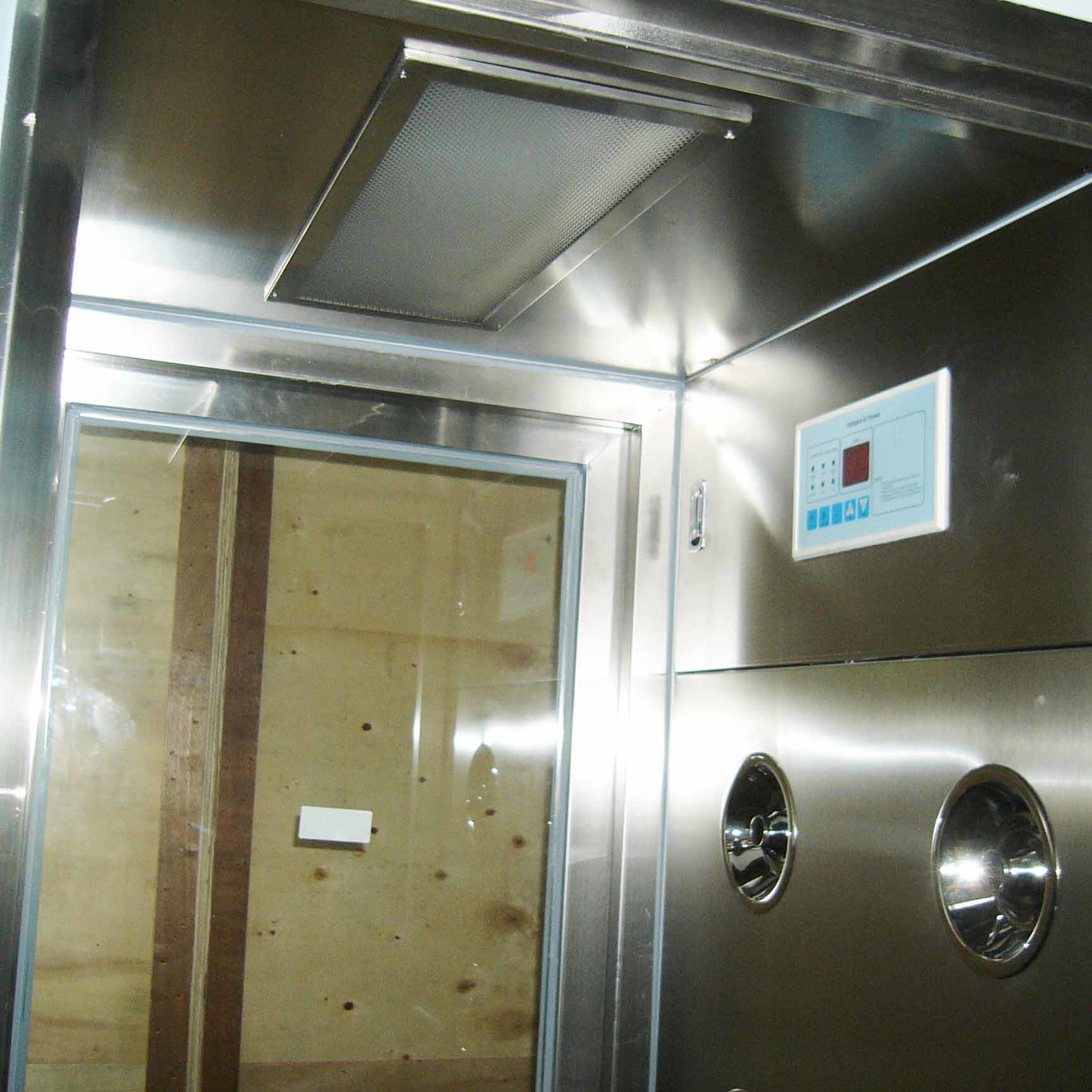

    Air Shower Inside:


    Spray Coating Stainless Steel Clean Room With Manual SS Swing Doors


    Drawing:

    Spray Coating Stainless Steel Clean Room With Manual SS Swing Doors


    Testing in factory:


    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing


    Warranty:


    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.


    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.


    Why you choose ZHISHENG Company ?


    Professional service:


    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.


    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.


    After sales service:


    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.


    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.


    Details:


    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.


    Certificate:

    We have CE and ROHS Certificate for air shower
