L Type GMP Clean Air Room Air Shower With Width 800mm Swing doors
Air
shower.pdf
Description:
Air showers are specialised antechambers which personnel must pass through before entering cleanrooms in order to decontaminate.
Decontamination is done by clearing off dust and dirt particles
from bodies of cleanroom personnel to minimize contamination of
equipment or products.
Designs to an air shower unit include single-side shower,
double-side shower, three-side shower, and top shower.
Spraying wind speed is around 25 m/s or above through stainless steel nozzles.
HEPA filters are generally used to filter out particles greater than 0.3micrometres in size from the shower air.
Air showers are considered essential equipment in fields where
sterile or dust-free conditions are critical,
such as life science and biomedical research, pharmaceutical, parenteral drug, microelectronics, aerospace and some precision manufacturing.
Technical Parameter:
| Product type | L Type GMP Clean Air Room Air Shower With Width 800mm Swing doors |
| Material for casing | Power coated steel for ouside, stainless steel 201 for inside |
| Material for doors | Stainless steel single-leaf swing doors |
| Nozzles | Stainless steel |
| Door leaf | Single-leaf |
| Door type | W800mm Manual swing doors |
| Blowing way | 2- side blowing |
| Control system | English IC intelligent control panel with English human voice |
| Locks | Electric lock |
| HEPA filter efficinecy: | H13 |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 18-25m/s above |
| Power supply | AC 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from
electric leakage) |
Size and specificaton:
| Product | L Type GMP Clean Air Room Air Shower With Width 800mm Swing doors |
| Model | AS-1400D-1-LS |
| External dimensions (mm) | W1400*D1000*H2100MM |
| Internal dimensions WxHxD(mm) | W800*D900*H1960MM |
| Doors | 2 sets of swing door |
| Door closer | 2 sets (outside) |
| Lock | 2 sets of electric locks interlocked |
| Suitable person | 1 person |
| Nozzles | 12 PCS(2-side blowing) |
| Blower fan | 1 set |
| Blow power(W) | 800W |
| Weight(kg) | Appro.280 |
| HEPA filter size | 610x610x69mm |
| HEPA filter qty | 1 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | Philips 1x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 20~25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control circuit board |
Optional: 1. Emergency stop buttons
2. Ionizer Nozzle
3. Interphone

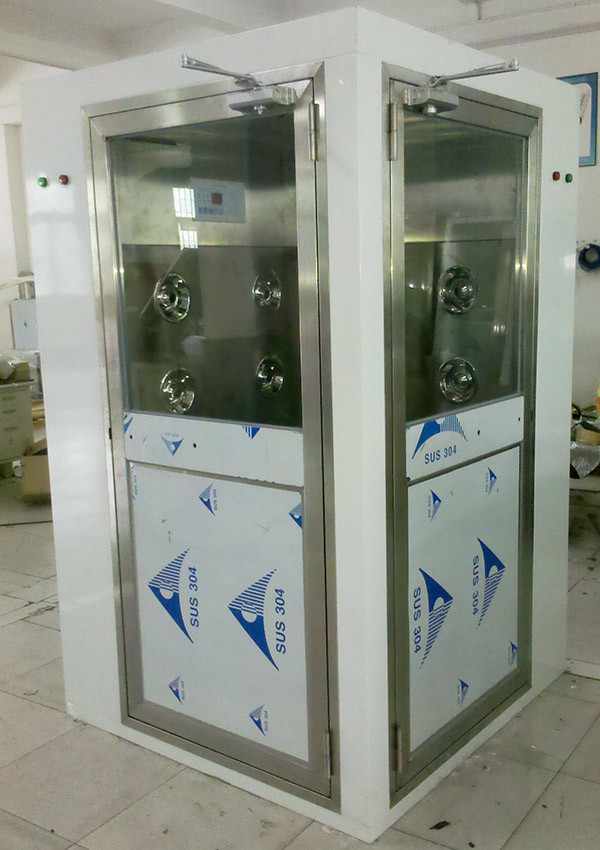

Air Shower Picture:
Packing: Plywood Case
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international
Standards before shipment. Each unit is shipped with a
documentation outlining the tests undertaken and
the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Air Shower Questions:
The below questions will help establish what air shower you need:
1. Is the air shower being used to enter a clean room environment?
2. Is the air shower being used to exit a contaminated enviroment?
3. Will the air shower be washed down or cleaned with harsh
chemicals?
4. Will the air shower be used in a food processing facility?
5. How Mnay people will be going through the air shower at a given
priod of time?
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
