    L Type Cleanroom Air Cleaning Equipment Air Shower 90 Degree Corner Doors

    Ask Lasest Price
    Brand Name : Zhisheng
    Model Number : AS-1300D-2.2-LS
    Certification : ISO 9001/CE/ROHS
    Payment Terms : T/T, Western Union
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : about 15 days upon receipt of deposit
    • Product Details
    • Company Profile

    L Type Cleanroom Air Cleaning Equipment Air Shower 90 Degree Corner Doors

    90 Degree Corner Doors L Type Automatic Industrial Air Shower Cleanroom


    Air shower.pdf


    Description:


    Clean air shower room is used for when a person into clean room to blow off the dust of person or cargo


    surface to keep the cleanliness of the clean room.


    Air in clean air shower room is pressed into plenum chamber by low-noise centrifugal fan ,and then its


    pressed out by HEPA filter .The clean air sprays out from sides,blowing off the personnel and tools


    surface,that its recycle into pre-filter by blower.


    Technical Parameter:


    Product typeAutomatic Industrial Air Shower Cleanroom
    Material for casing1.2mm cold rolled steel with powder coated for outside and inside casing, stainless steel for base
    Material for doorsW800MM Stainless steel single-leaf swing doors
    NozzlesStainless steel
    Door leafW800mm Single-leaf
    Door typeManual swing doors
    Blowing wayTwo sides blowing
    Control systemEnglish intelligent control panel with human voice
    LocksElectric lock
    HEPA filter efficinecy:H13
    Pre filterG3
    LightPhilipines brand
    Photoelectric sensorOMRON brand
    Shower time0-60s adustable
    Spurt wind speed22-25m/s above
    Power supplyAC 380V/50HZ/3PH
    SafeguardLeakage switch and thermal overload relay (Protect people from electric leakage)

    Size and specificaton:


    ProductAutomatic Industrial Air Shower Cleanroom
    ModelAS-1300D-2.2-LS
    External dimensions (mm)W1300*D2200*H2050MM
    Internal dimensions WxHxD(mm)W800*D2000*H1950MM
    Doors2 sets of swing door
    Door closer2 sets (outside)
    Lock2 sets of electric locks interlocked
    Suitable personThree person
    Nozzles6+6=12 PCS(2-side blowing)
    Blower fan2 sets
    Blow power(W)800W
    Weight(kg)Appro.360
    HEPA filter size610x610x69mm
    HEPA filter qty2 PCS
    HEPA filter efficiency99.99% @ 0.3um
    Photolectric sensor1 PCS
    Fluorescent Lamp1 x 20W
    Nozzle diameter32mm
    Air shower time0-60 s Adjustable
    Spurt wind speed20~25m/s
    Power SupplyAC380V/50Hz/3Ph
    Control systemMicrocomputer control circuit board

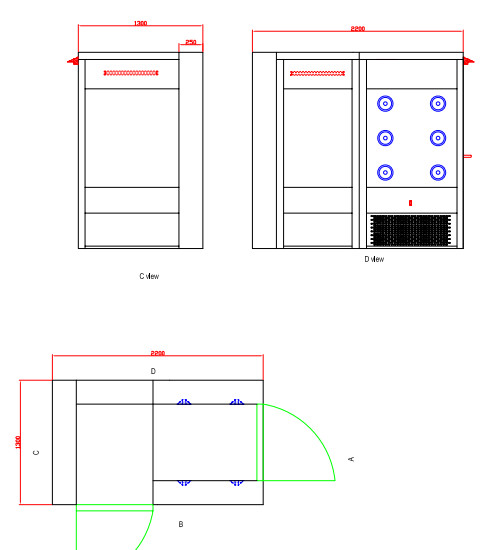

    Air Shower Drawing:


    L Type Cleanroom Air Cleaning Equipment Air Shower 90 Degree Corner Doors

    L Type Cleanroom Air Cleaning Equipment Air Shower 90 Degree Corner Doors


    Packing: Plywood Case


    Testing in factory:


    All of equipment will be individually tested for safety and performance in accordance with international


    Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and


    the units individual results for each unit.


    Testing before shipment:


    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing


    Warranty:


    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.


    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.


    Why you choose ZHISHENG Company ?


    Professional service:


    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.


    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.


    After sales service:


    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.


    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.


    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.


    Certificate:

    We have CE and ROHS Certificate for air shower
