Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window

DONGGUAN LIHONG CLEANROOM CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window from wholesalers

    Buy cheap Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window from wholesalers
    • Buy cheap Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window from wholesalers

    Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window

    Ask Lasest Price
    Brand Name : Zhisheng
    Model Number : ZS-CC-01
    Certification : ISO9001
    Supply Ability : 200sets per month
    Delivery Time : about 15 days upon receipt of deposit
    • Product Details
    • Company Profile

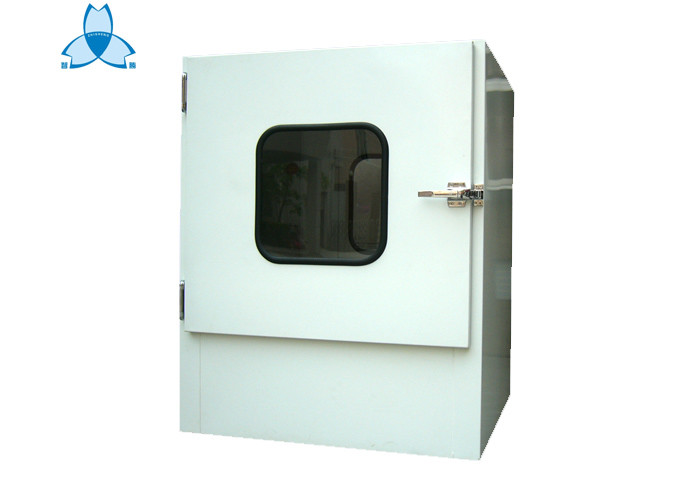

    Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window


    Laboratory Pharmaceutical Clean Transfer Window / Air Shower Pass Box


    Laboratory Pharmaceutical Clean Transfer Window is a wall mounted used for controlling cross contamination between two zones.

    Transfer window come with a mechanical or electrical interlock system so that only one door can be opened at a time.


    Transfer window are available in powder coated steel, 304 stainless steel construction and 316 stainless steel construction.


    Standard Features


    • Clear acrylic doors
    • Vinyl bulb gasket seals for the doors
    • stainless steel for inside
    • A mechanical interlock (except for units with fire rated doors)

    Optional Features

    • HEPA filters
    • Fan filter units
    • Electric interlock system
    • Support brackets
    • Electro-polished finish for stainless steel pass box
    • Double wall construction (painted and stainless steel)
    • 304 Stainless Steel door frames with 1/4" thick clear tempered glass
    • Stainless steel/spring loaded door latch
    • UV light

    Application


    It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.

    The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.


    Standar size:


    ModelZS-CC1ZS-CC2ZS-CC3
    External dimensions (W x D x H)685x460x590785x660x690985x660x890
    Size for working area ((W x D x H)500x400x500600x600x600800x800x600
    MaterialCold rollled steel with powder coated for outside, stainless steel for inside
    Lock typemechanical interlock
    WindowsClear Acrylic sheet

    we can offer special size and requirement as per our clients.


    Drawing:


    Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window

    Laboratory Pharmaceutical Static Passbox Customized Clean Transfer Window


    Testing in factory:


    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Function testing


    Warranty:


    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.


    Why you choose ZHISHENG Company ?


    Professional service:


    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.


    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.


    After sales service:


    We respect your feed back after receive the goods.
