    High Performance H13 V Bank Filter , Portable Air Filter For Hospital Operating Room

    Ask Lasest Price
    Brand Name : Zhisheng
    Model Number : ZSZV-3300
    Certification : ISO9001, Rohs
    Supply Ability : 500 pieces
    Delivery Time : about 15 days upon receipt of deposit
    • Product Details
    • Company Profile

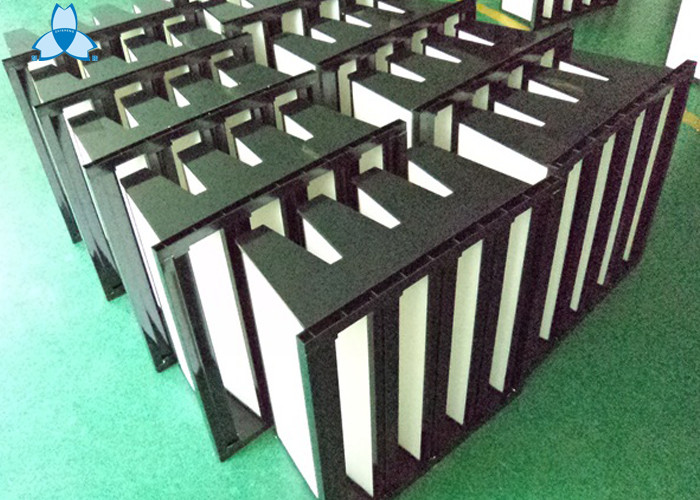

    High Performance H13 V Bank Filter , Portable Air Filter For Hospital Operating Room

    High Performance H13 V- Bank used for super-efficient filtration system
    Description:
    • Features: High efficiency, low resistance and large air flow.
    • Suitable for the terminal filtration of the air conditioning system and the air cleaning facility needing large air flow;
    • Large filtering area to make sure the low resistance on the large airflow side;
    • Either standard galvanized steel frame or stainless steel frame;
    • Sealant: Polyurethane;
    • Sealed material: Molding plastic polyurethane or neoprene;
    • Max.operating temperature: 80 degree centigrade;
    • One-by-one test;
    • Filtering Efficiency Grade: H13, H14(EN 1822);
    Advantages of the product:

    1.High dust holding
    2.Low initial pressure drop
    3.Good raw material, competitive price
    4.Leak test one by one before delivery
    5.Fast delivery
    6.Size can be customized

    Features:


    Product typePlastic frame compact filter for cleanroom
    EfficiencyF6-F9 (EN799)
    MediaMircro glass fiber or PP
    Separatorhot-melt
    FrameABS plastic
    SealantPloyurethane
    Initial pressure drop170 pa (0.68 WG)
    Final pressure drop600 pa
    Operating temperature80 ºC

    Common applications:


    It is applied to large air flow ventilation system, filtration system of Pharmaceutical, food, hospitals, clean room, and so on.

    It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system


    SIZE AND SPECIFICATION


    ModelDimensions(mm) WxHxDRated air flow (m³/h)Initial resistance (Pa)Efficiency (EN1822)FrameMedia
    ZSZV-3300592x592x2923300

    ≤120 (Media: PP))

    ≤220 (Media:fiberglass)

    F7-H13Plastic/ galvanized sheet

    PP or

    Fiberglass

    ZSZV-1600592x292x2921600
    ZSZV-3000592x490x2923000
    ZSZV-1600-2592x287x2921600
    ZSZV-800287x287x292800
    ZSGV-3600610x610x2923600
    ZSGV-1800610x305x2921800

    High Performance H13 V Bank Filter , Portable Air Filter For Hospital Operating Room

    Payment Term:


    30% prepayment by T/T at order, the balance of payment before shipment.

    Delivery time:


    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.


    After sales service:


    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We care of your complain within 48hours.
