Self - Supported Air Conditioning Air Filters , Pocket Cleaning Air Filters For Pharmaceutical

DONGGUAN LIHONG CLEANROOM CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Self - Supported Air Conditioning Air Filters , Pocket Cleaning Air Filters For Pharmaceutical from wholesalers

    Buy cheap Self - Supported Air Conditioning Air Filters , Pocket Cleaning Air Filters For Pharmaceutical from wholesalers
    • Buy cheap Self - Supported Air Conditioning Air Filters , Pocket Cleaning Air Filters For Pharmaceutical from wholesalers

    Self - Supported Air Conditioning Air Filters , Pocket Cleaning Air Filters For Pharmaceutical

    Ask Lasest Price
    Brand Name : Zhisheng
    Model Number : ZS-F6
    Certification : ISO9001, Rohs
    Supply Ability : 1000 pieces
    Delivery Time : about 15 days upon receipt of deposit
    • Product Details
    • Company Profile

    Self - Supported Air Conditioning Air Filters , Pocket Cleaning Air Filters For Pharmaceutical


    Purple f7 Efficiency 80-85% Pocket Air Filter For Pharmaceutical Factory


    Product Description

    The filter media used is primary and medium effiency nonwovens and activated carbon nonwoven made into pocket structure by welding and melding process, with or without frame (galvanized steel sheet or extruded aluminium profiles).

    The frame can be made into any size for easy installment and maintenance.


    Apllication

    1. General filtration in the firelds of eleatrics, medicals, foods and precise machinery.

    2. Pre-filtration for high efficiency air filtration to reduce the burden on high effiency filter and prolong the service lifetime.


    Features:


    Product typeSynthetic fiber pocket filter for second stage gas turbine
    MediaSynthetic fiber(3-layer) / Mircro glass fiber
    FrameGalvanized /Aluminum /ABS plastic
    ClassF5-F9 (EN799)
    Average Efficiency45%; 65%; 85%; 95%;
    Media colorWhite, Orange(Green), Pink, Yellow
    Initial pressure drop50-120 pa (0.2-0.48 WG)
    Final pressure drop200-500 pa(0.8-2 WG)
    Operating temperature80 ºC
    Humidity resistance:100%

    Standard size and specification:


    ModelOutside dimensions(mm) (WxHxD)Rated air flow(m3/h)Initial resistance (Pa)Efficiency (class)PocketsMaterial
    Dust-spotEN799FrameMedia
    ZS-F5495x295x500 (20”x12”x20”)100050Pa40-50%F5 (White / Yellow)5

    Aluminum /Galvanized Sheet/

    plastic

    Non-woven fabric (synthetic fiber)
    495x495x500 (20”x20”x20”)18005
    595x295x500 (24”x12”x20”)13006
    595x595x500 (24"x24"x20")26006
    ZS-F6495x295x500 (20”x12”x20”)100055Pa60-70%F6 (Orange /Green)5
    495x495x500 (20”x20”x20”)18005
    595x295x500 (24”x12”x20”)13006
    595x595x500 (24"x24"x20")26006
    ZS-F7495x295x500 (20”x12”x20”)1000110Pa75-85%F7(Pinky)5
    495x495x500 (20”x20”x20”)18005
    595x295x500 (24”x12”x20”)13006
    595x595x500 (24"x24"x20")26006
    ZS-F8495x495x500 (20”x20”x20”)1800120Pa90-95%F8(Yellow)5
    595x295x500 (24”x12”x20”)13006
    595x595x500 (24"x24"x20")26006

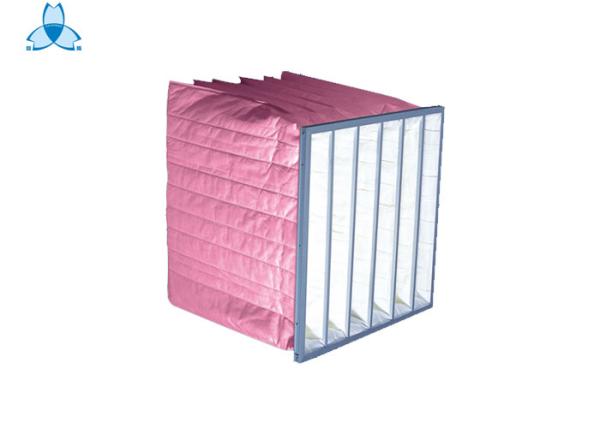

    Picture:


    Self - Supported Air Conditioning Air Filters , Pocket Cleaning Air Filters For Pharmaceutical


    Why you choose ZHISHENG Company ?


    Professional service:


    Fast reply in 12 hours if we receive any inquiry or request from customer

    • Familiar with equipment.


    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.


    After sales service:


    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.


    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.
