    M6 High Dust Capacity Self Supporting Pocket HEPA Air Filter For Gas Turbines

    Ask Lasest Price
    Brand Name : Zhisheng
    Model Number : ZS-GT-M6
    Certification : ISO9001, Rohs
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 1000 pieces
    Delivery Time : about 15 days upon receipt of deposit
    • Product Details
    • Company Profile

    M6 High Dust Capacity Self Supporting Pocket HEPA Air Filter For Gas Turbines

    M6 High Dust Capacity Self Supporting Pocket Air Filter For Gas Turbines

    -For air intake filtration of turbo machines and gas turbines.

    Self-supported pocket filters are manufactured in plastic frame version and synthetic fiber.

    The air intake of this pocket filter is equipped with aerodynamic stream ledges to provide the lowest possible differential pressure.

    Each single pocket of the pocket filters are made of progressive structured synthetic media, which is leakage free welded and in self supporting stability.

    On the one hand this conditional on manufacturing shape stability results from tubular separators, on the on the other hand this is further supported by an additional reinforcement of the media on the clean air side of each single pocket.

    By this the pocket filter is able to keep its shape also at variation in pressure or at shut down of the turbine.

    Features:

    Filter class: G4, M5, M6 according to EN 799
    Plastic frame, no corrosion.

    Absolute stability at 100% relative humidity
    Max operating temperature up to 80 ℃
    Additional reinforcement for extreme load

    Application:
    Gas Turbines
    Turbo machines
    Compressor stations


    Dimensions:

    592x592x600mm
    490x592x600mm
    286x592x600mm

    Size and specification

    Type of pocket filterZS-GT-G4ZS-GT-M5ZS-GT-M6
    Size (W x H x D)592x592x600mm592x592x600mm592x592x600mm
    Number of pockets666
    Filter classG4M5M6
    Rated airflow(m3/h)300030003000
    Average gravimetric arrestance grade(%)>90>90>95
    Initial pressure dorp(pa)354550


    Heat bonded spacers stabilize pocket shape:
    M6 High Dust Capacity Self Supporting Pocket HEPA Air Filter For Gas Turbines

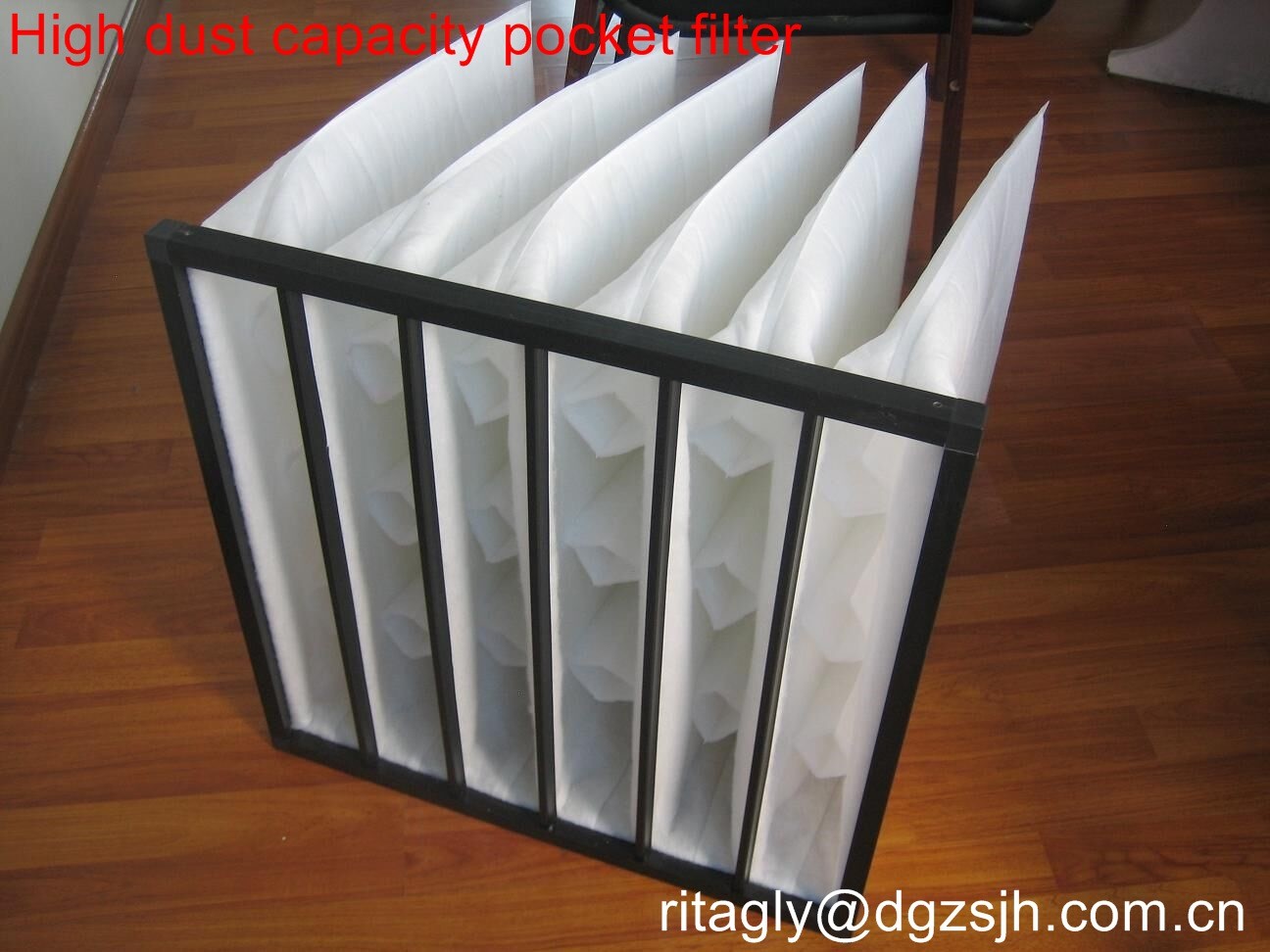

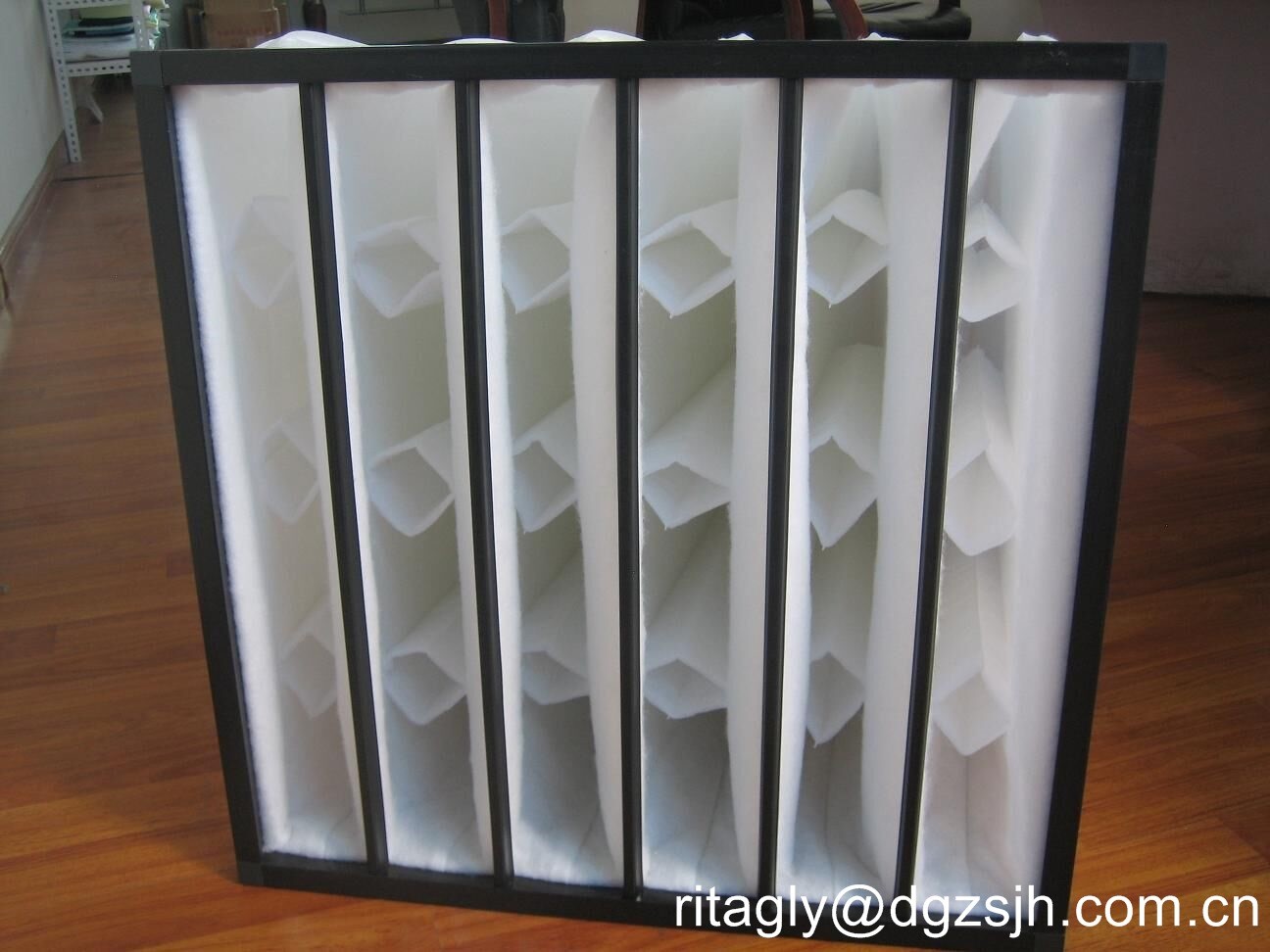

    Pictures:

    M6 High Dust Capacity Self Supporting Pocket HEPA Air Filter For Gas TurbinesM6 High Dust Capacity Self Supporting Pocket HEPA Air Filter For Gas TurbinesM6 High Dust Capacity Self Supporting Pocket HEPA Air Filter For Gas Turbines

    Product Range:

    Filter class(EN799)

    Average Arrestance Am in%
    Av. Atm. Dust spot eff. Em in%

    Product description
    Coarse dust filtersG380≤Am<90

    Roll Filter media
    Filter mats and panel filter
    Filter mats and rolls
    Bag filter inserts

    G4Am≤90

    Filter mats and rolls
    Bag filter

    Fine dust filtersF540≤Em<60

    Filter mats and rolls
    Bag filter

    F660≤Em<80

    Bag filter
    Compact fine dust filters
    Mini-pleat filters

    F780≤Em<90

    Bag filter
    Compact fine dust filters
    Mini-pleat filters

    F890≤Em<95

    Bag filter
    Compact fine dust filters
    Mini-pleat filters

    F995≤Em

    Bag filter
    Compact fine dust filters
    Mini-pleat filters

    Filter class(EN1822)Extraction efficiency to EN 1822 in%Product description
    High efficiency filters(HEPA and UPLA)H10>85Mini-pleat filters Compact fine dust filters
    H11>95Mini-pleat filters Compact fine dust filters
    H13>99.95

    Mini-pleat filters Compact fine dust filters
    HEPA filters

    H14>99.995

    Mini-pleat filters
    HEPA filters

    U15>99.9995Mini-pleat filters
    U16>99.99995Mini-pleat filters
    F995≤Em

    Bag filter
    Compact fine dust filters
    Mini-pleat filters
