    500 Persons Cleanroom Air Shower Tunnel With Auto Sliding Doors

    Ask Lasest Price
    Brand Name : Zhisheng
    Model Number : AS-2350D-4.8-AD
    Certification : ISO 9001/CE/ROHS
    Payment Terms : T/T, Western Union
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : about 15 days upon receipt of deposit
    • Product Details
    • Company Profile

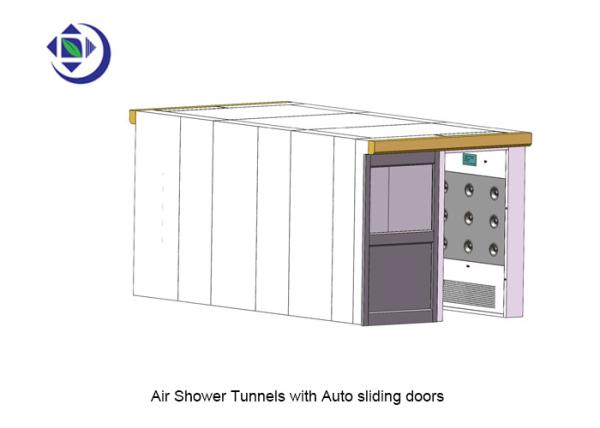

    500 Persons Cleanroom Air Shower Tunnel With Auto Sliding Doors

    Air Shower Tunnel With Auto Sliding doors for 500 persons, Air Lock as Entrance unit for clean room


    Air shower for materials.pdf


    Features:


    The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.


    Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.


    Size and Specifications:


    ProductAir shower tunnel with auto sliding doors
    External sizeW2350xD4800xH2200mm
    Internal sizeW1850xD4500xH2000mm
    Material:T=1.2 mm powder coated steel
    Doors typeW=900mm 9 single-leaf SS304 auto sliding doors
    Door closerNONE
    Electric lockNONE
    Indicator lightsNONE
    Blower fan6sets,capacity: 2500CMH/set
    99.99% HEPA filter610*610*69mm6 pcs
    Pre filter6 pcs
    Nozzle66 pcs
    Bloweing type2 -side blowing, wind speed: >24m/s
    Control systemIC display
    Photoelectric snesorOmron brand 1pcs
    Philips LED light6x8W

    Auto single-leaf sliding doors


    Material: T=1.2mm power coated steel for outside, and T=1.2mm stainless steel 304 for inside


    According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,


    According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.


    According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower


    Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.


    Standard Size and Specifications:


    ModelAir showerCargo Air shower
    AS-1200D-1AS-1400D-1AS-1400D-1.5AS-1400D-2CAS-1700T-2 (2 Modules)
    External dimensions WxHxD(mm)1200x1000x 21001400x1000x 21001400x1500x 21001400x2000x 21001800x2000x2100
    In Dimensions WxHxD(mm)800x900x 1960800x900x 1960800x1400x 1960800x1900x 19601200x1900x 1960
    Material for casing
    • Power coated steel, 2 powder coated steel for outside and SS304 for inside,or Full SS304
    DoorsSwing door /Sliding door/High speed shutter door; Material: stainless steel or aluminum
    Suitable person111-22-3Cart
    Nozzles12(two side)12(two sides)18(two sides)24(two sides)32(three sides)
    Blower fan#4250x 1 set#4195 x 2 sets#4195x2sets#4250x2sets#4195x4sets
    Blow power(W)1000W850W850W2000W1700W
    HEPA filter’s dimensions

    610x610x69

    one piece

    610x610x69 two piece610x610x69 two piece915x610x69 two pieces

    610x610x69

    4pcs

    Nozzle diameter32mm
    Air shower time0~99s Adjustable
    Spurt wind speed20~25m/s
    Voltage380V/50Hz/3Ph; 220V/50Hz/1Ph
    Filter efficiencyAbove 99.99% efficiency on 0.3um particles

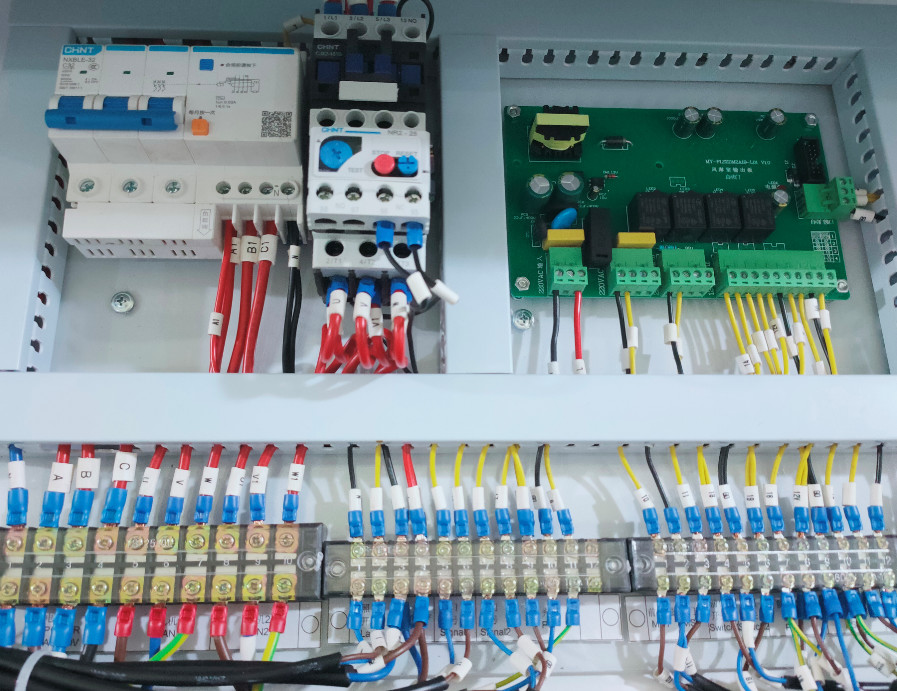

    Control systemIC control panel, electronic interlock and automatic blowing

    Display

    500 Persons Cleanroom Air Shower Tunnel With Auto Sliding Doors

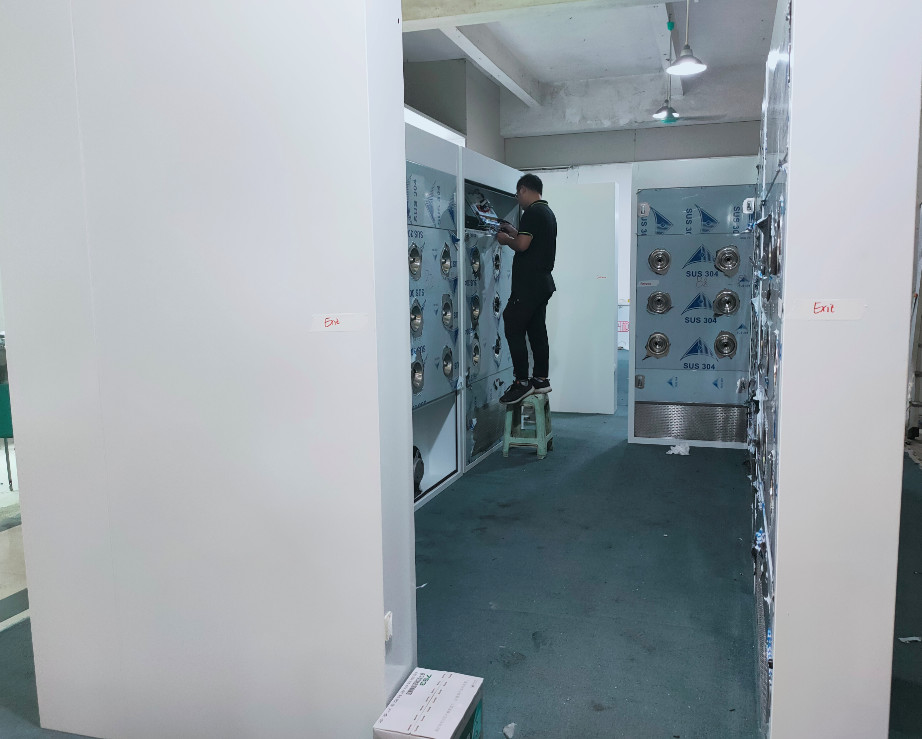

    Air shower inside:

    500 Persons Cleanroom Air Shower Tunnel With Auto Sliding Doors


    Metal Indicator light -----Good-looking, high quality


    500 Persons Cleanroom Air Shower Tunnel With Auto Sliding Doors

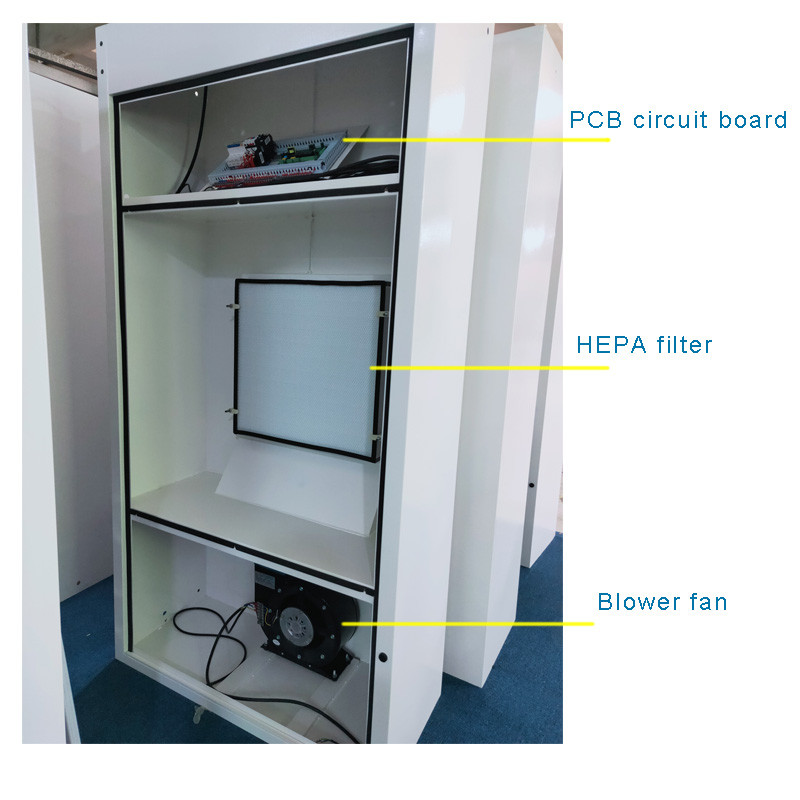

    Lock Screws---It is easy for opening the panel inside and maintain air shower.

    500 Persons Cleanroom Air Shower Tunnel With Auto Sliding Doors


    500 Persons Cleanroom Air Shower Tunnel With Auto Sliding Doors500 Persons Cleanroom Air Shower Tunnel With Auto Sliding Doors500 Persons Cleanroom Air Shower Tunnel With Auto Sliding Doors

    500 Persons Cleanroom Air Shower Tunnel With Auto Sliding Doors500 Persons Cleanroom Air Shower Tunnel With Auto Sliding Doors
