Cargo Air Shower for Material with 4-leaf auto sliding doors For SUMSANG factory

Door type: 4-leaf Auto Sliding doors, save the space

Air shower for materials.pdf

It is a large air shower tunnel for material carts, adopt high speed shutter doors, which open and close the doors fastly, and it is save the space.

Size and specificaton:

Description:

Air Shower Tunnel have become an integral component of the modern cleanroom because their benefits

more than pay for the small amount of space they occupy. With their interlocking doors and automatic

cycling, air showers act as traffic guards, controlling passage into and out of the cleanroom.

After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.

This air shower tunnel of which automatic sliding door is convenient for people entering air shower room,

as well to reduce the enter time.

Air Showers clean micro particles off personnel and equipment as they enter or exit a cleanroom.

Upon exit, cleanrooms are envelope sealed when the unit automatically switches into an airlock.

They can also be used to remove hazardous contaminate from personnel when exiting facilities

Not to be ignored is the psychological impact an air shower creates: Personnel are reminded with every

passage that they are entering a controlled environment,

while prospective clients are assured of your quality control standards when they enter your facility.

Blowing type: single-side blowing, double-side blowing, three-side blowing.

Optional accessory:

1. Manual swing door / automatic sliding door/High speed scroll shutter door

2. HEPA filter or ULPA filter

3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304

4. Common fluorescent lamp / UV Sterilizer lamp

5. With voice announce

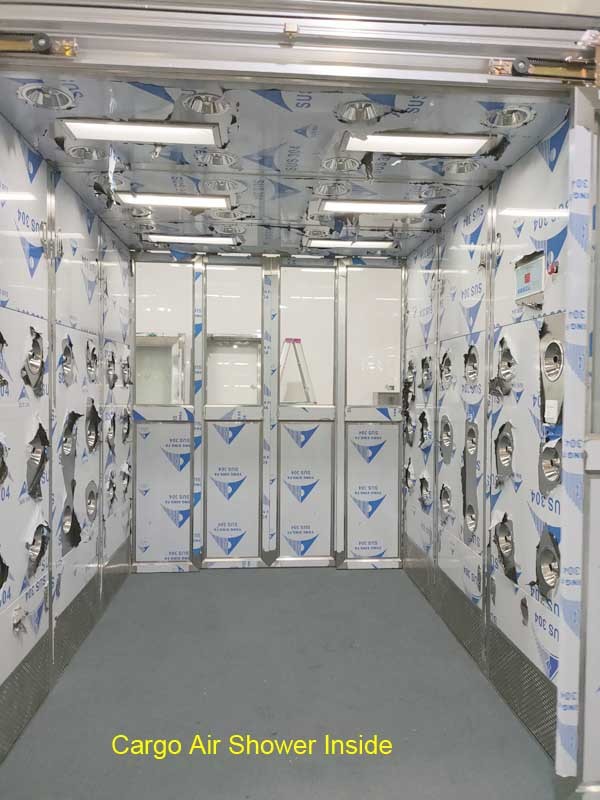

Air shower tunnel picture:

Drawing of Air Shower for materials:

Operation Instruction

1. Put air shower on the correct location, connect the power wires of air shower with the power wires,

There are FIVE lines: 3*Live line, 1*Null line and 1*Earth line. The power supply is AC380V/50HZ/3 phases.

2. In order to make sure air shower to work normally and the cleanliness of workshop, please kindly use air shower according to the following correct method.

2.1 Please check if there are any people in air shower before you enter it. When air shower is working entrance door and exit door are electronic interlocked, it is forbidden to open the door at this moment.

2.2 Put hand toward to Open switch, the entrance sliding door will open , enter air shower, then entrance sliding door will be close automatically, photoelectric sensor is reacted by people or goods, blower fan will be

blowing automatically (The air shower time is set 15seconds at factory, it is forbidden to change the air shower time during blowing), after blowing, exit sliding door open automatically, go out air shower,

then exit sliding door will be close automatically.

Can custom air showers be manufactured?

We offers both standard and custom air showers. Please contact us for more information.

Is it possible to alter the settings on the air shower?

Our air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set cycle operation times, entrance/exit delays, when the lights turn off/on, and more.

Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.

Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.

Dongguan Zhisheng（Lihong） Purification Technology Co., Ltd. is builded in 1997, we are specialized in manufacturing clean room equipments, like air shower, air shower tunnels, Fan Filter unit(FFU), Pass Box,  Clean Bench, Laminar Flow cabinet, clean booth, various sole cleaning machines and boot washer,  various air filters including HEPA filters, fine filters, V type filter, medium filter, pocket filters and Pre-filter and other filters,  and HVAC air diffusers, air grilles and volume control dampers.

We make our products strictly in accordance with state standards. With the top-graded product quality in the industry, our company enjoys great reputation among the customers all over the country. Our products are also exported to Europe, North America, Middle East, Southeast Asia and other countries.

Clean room equipment include air shower, clean bench, FFU,pass box, pass box with air shower, clean booth etc.

Air filters include primary, medium, HEPA filter, Replacement filter for Projector and Air Purifier.

Our HEPA filter has passed the tests of National Center of Quality Supervision and Inspection and Testing for Air Conditioning equipment.

The purifying equipment are in conformity with GB5007-2001 Design Code of Cleaning workshop. Our wide range of air purifying product will surely satisfy different engineering requirements of different purifying grades.

We also supply shoe sole cleaning machines, Hand wash stations, boot washers,wash tanks and  hygiene station machines and stainless steel products for clean room and food factories.

HVAC products include air diffuser, air grille, air louver, air damper, pressure damper, Sound absorber and other accessory parts for air-conditioners. They are widely applied in many large-scale projects and win consistent high praise of our customers because of the superior quality and delicate crafts

We develop new products for pharmacy and hospital, like dispensing room, dynamic pass box, Electric sliding door and swing door for hospital, Laminar flow air supply ceiling,drug cabinet, instruction cabinet ,Wash hand sink, Liquid crystal light and so on.

Adhering to the operation tenet of Honesty Service and Pursue Perfection, our skillful and high quality employees will produce the best and most reliable products with advanced processing equipment and excellent materials. Comprehensive and prefect after-sales services will be available to customers. We are committed to provide the best products and comprehensive services to all customers.

We have Lasing cutting machine, Bending machine, Punching machine, these new machines makes sure the good-looking and superior quality for the machines.

Our workers have been more than 10 year experience in welding , and they have good skills to make sure the quality of machine.

Besides, we have R & D team, we have 5 engineer to design and develop the new product and selove the techncial issues of the machines.
