AS S-1700D-1.5 Stainless steel air shower with auto double-leaf
sliding doors for two person
Door type: Double-leaf auto sliding doors.
Power supply: AC380V, 50hz, three phase
Air shower
for materials.pdf
Air shower is assembled with cabinets, roof, base, doors, electric
locks, door closers, door sensers, photoelectric sensors, blower
fans, HEPA filters, pre filters,nozzles, IC control panels, PCB
board and other parts. Two doors are interlocked, one is open,
other is closed, when people go into air shower, and close the
doors, the photoelectric sensor is infrated by person, the fan is
working, return air from primary filter into fan, then it is blowed
through HEPA filter, high airflow go through smal diameter of
nozzles , wind speed 22m/s from nozzles, which will blowing the
dust from persons, after blowing, open the exit door, person enter
clean room, thus avoiding to people take dust into cleanroom, keep
cleanliness of clean room.
Cleanroom air showers provide an extra layer of protection for your
products and your workers, preventing any harmful contaminants or
particles from entering your cleanroom. An example of too many
particles could cause a spoiled batch of pharmaceuticals or failure
of electrical equipment. The role of the air shower is to prevent
these major problems from happening. They also help remind
employees of the importance of remaining particle-free. If
employees aren't taking as much care as they should when donning
their gowns, an air shower will help ensure that any extra
particles are wiped off before they enter the decontaminated space.
Features:
The two doors of the automatic air shower are electronically
interlocked and can function as an air lock chamber to prevent
external pollution and unpurified air from entering the clean area.
Eliminate the staff to bring hair, dust, bacteria into the
workshop, to meet the strict dust-free workshop purification
standards of the workplace, meet the production environment
pollution requirements, and produce high-quality products.
| Product | Air Shower with auto double-leaf sliding doors |
| External size | W1700xD1500xH2100mm |
| Internal size | W800xD1500xH1960mm |
| Material: | T=1.2 mm stainless steel 304 for main body and the base |
| Doors type | W=800mm stainless steel double-leaf sliding door for entrance door
and exit door |
| Door closer | NONE |
| Electric lock | NONE |
| Indicator lights | NONE |
| Blower fan | 2sets,capacity: 2500CMH/set |
| 99.99% HEPA filter | 610*610*69mm 2pcs |
| Pre filter | 2 pcs |
| Nozzle | 9+9=18 pcs |
| Bloweing type | Two -side blowing, wind speed: >20-25m/s |
| Control system | Control by IC control panel |
| Photoelectric snesor | Omron brand 1pcs |
| LED light | 1x8W |
Photos of air shower:
Drawing:
Description:
Cleanroom air shower is a kind of partial purifying equipment of
strong universality.
With novel structure, beautiful appearance, reliable running, low
consumption, energy saving and convenient maintenance,
it is widely used in electron, machinery, medicine, foodstuff,
color packing, brewage, biological engineering and other industry
and scientific research fields.
It is usually installed between clean room and unclean room. When
people and goods enter into clean room, they have to be blown at
first.
The blown clean air can get rid of dust bough by people and goods
and can effectively prevent dust source from entering into clean
area.
Principle
The air inside of air shower is firstly filtered under the action
of fan and enters into static pressure tank.
After filtered with high-efficiency air filter, clean air is jet
out at high speed from the nozzle of air shower.
The nozzle angel is adjustable. It can effectively blow out dust
attached on people and goods’ surface.
The blown dust enters into primary-efficiency air filter again,
circulating so and reaching to the aim of air shower.
Full stainless steel Air shower/New Corner Air shower Air shower
material
1. color steel plate
2. steel plate
3. stainless steel
Application: Stainless Steel Air Shower is usually used for Food ,
medicine, biological or other industry.
Standar size and specificaton:
| Model | Air shower | Cargo Air shower |
| AS-1200D-1 | AS-1400D-1 | AS-1400D-1.5 | AS-1400D-2 | CAS-1700T-2 (2 Modules) | CAS-1700T-4 (4 Modules) |
| Ex size WxDxH (MM) | 1200x1000x 2050 | 1400x1000x 2050 | 1400x1500x 2050 | 1400x2000x 2050 | 1800x2000x2050 | 1800x4000x 2050 |
| In size WxDxH (MM) | 800x900x 1920 | 800x900x 1920 | 800x1400x 1920 | 800x1900x 1920 | 1200x1900x 1920 | 1200x3900x 1920 |
| Doors | Swing door/sliding door/shutter door Door frame: SS/ALU |
| Suitable person | 1 | 1 | 1-2 | 2-3 | Cart |
| Nozzles | 12(two side) | 12(two sides) | 18(two sides) | 24(two sides) | 32(3- side) | 64(3- side) |
| Fan | #4250x1 set | #4195 x 2 sets | #4195x2sets | #4250x2sets | #4195x4sets | #4195x8sets |
| Power(W) | 1000W | 850W | 850W | 2000W | 1700W | 3400W |
| HEPA filter | 610x610x69 1pcs | 610x610x69 2pcs | 610x610x69 2pcs | 915x610x69 2 pcs | 610x610x69 4pcs | 610x610x69 8pcs |
| Nozzle | ф 25 or 32mm |
|
| Voltage | 380V/50Hz/3Ph; 220V/50Hz/1Ph |
| Control system | IC intelligent control panel, blowing automatically by
photoelectric sensor, the two door are electric interlocked. |
Note: Customer's size and specification can be acceptable.
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international Standards before
shipment. Each unit is shipped with a documentation outlining the
tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests

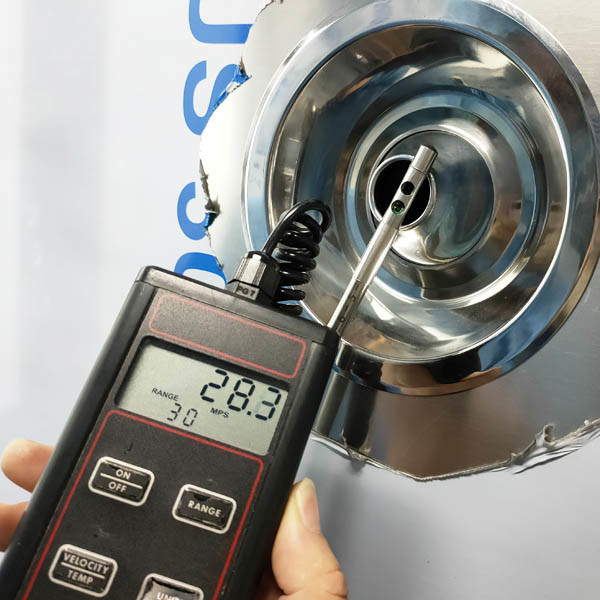

3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
