Clean Room Pass box and Stainless steel 304 Conveyor for Passing goods into Clean Room

Air Shower Pass Box With Conveyor

Air Shower pass box and conveyor.pdf

Both forward moving and Backward moving

Air Shower Pass Box is matched with conveyor, used for full automatic producing line which required clean class level.

Applications: For Pharmacy, electronic, food and other high claenliness clean room.

Pass box material: Powder coated steel or stainless steel

Pass box can do air shower and non air shower type, on the based design of pass box plus with automatic control system.

Features:

Size for Conveyor: L6000xW700mmxH400mm

Material for Conveyor: Stainless steel 304

The steps of Pass box and Conveyor:

Princeples:

They are cominbed with pass through box and conveyor.

Pass through box's material is powder coated steel or stainless steel, it is composed of two automatic sliding doors, HEPA filters,, primary filters, Blower fans, Nozzles. When goods into pass through box, it will be infrated by sensor to blowing to remove the dust particle from goods, the two doors are interlocked, it means that one door open, the other one must be closed, therefore it is prevent the airflow convection between non clean room and clean room, to keep the cleanliness of clean room.

The conveyor is L type, which is usually installed in the corner of workshop, suitable for the narrow space.

The workers put the goods on the conveyor, it is moving to the entrance door of pass box, it will open automatically, then moving on into pass box, the 2 doors close and the conveyor stops, then the pass box is blowing and reomving the dust particles from goods, after blowing, the exit door will open automatically, the conveyor will conintues to moving on , the exit doors will be closed, when goods arrive the end point and no worker takes it away, the coveyor will stop.

Features:

The conveyor material: Stainless steel rollers or belt.

The conveyor running: forward working/backward working/Both forward and backward working.

The speed of conveyor: 0-0.1m/s

Optional accessories for Pass Box:

1. E-stop

2. UV light

3. Anti-static PVC curtains for doors, if customers want to reduce the cost.

we can offer special size and requirement as per our clients.

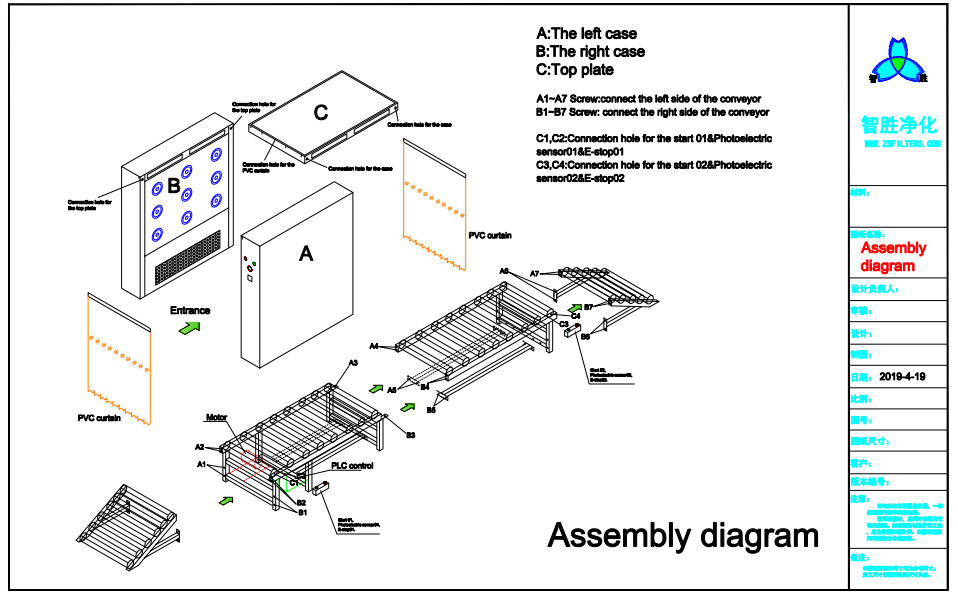

Drawing of pass box and conveyor

Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Why you choose ZHISHENG Company ?

Professional service:

• Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.

Delivery time:

• Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

Contact details:

Dongguan Zhisheng Purification Technology Co.,Ltd.

Dongguan Zhisheng（Lihong） Purification Technology Co., Ltd. is builded in 1997, we are specialized in manufacturing clean room equipments, like air shower, air shower tunnels, Fan Filter unit(FFU), Pass Box,  Clean Bench, Laminar Flow cabinet, clean booth, various sole cleaning machines and boot washer,  various air filters including HEPA filters, fine filters, V type filter, medium filter, pocket filters and Pre-filter and other filters,  and HVAC air diffusers, air grilles and volume control dampers.

We make our products strictly in accordance with state standards. With the top-graded product quality in the industry, our company enjoys great reputation among the customers all over the country. Our products are also exported to Europe, North America, Middle East, Southeast Asia and other countries.

Clean room equipment include air shower, clean bench, FFU,pass box, pass box with air shower, clean booth etc.

Air filters include primary, medium, HEPA filter, Replacement filter for Projector and Air Purifier.

Our HEPA filter has passed the tests of National Center of Quality Supervision and Inspection and Testing for Air Conditioning equipment.

The purifying equipment are in conformity with GB5007-2001 Design Code of Cleaning workshop. Our wide range of air purifying product will surely satisfy different engineering requirements of different purifying grades.

We also supply shoe sole cleaning machines, Hand wash stations, boot washers,wash tanks and  hygiene station machines and stainless steel products for clean room and food factories.

HVAC products include air diffuser, air grille, air louver, air damper, pressure damper, Sound absorber and other accessory parts for air-conditioners. They are widely applied in many large-scale projects and win consistent high praise of our customers because of the superior quality and delicate crafts

We develop new products for pharmacy and hospital, like dispensing room, dynamic pass box, Electric sliding door and swing door for hospital, Laminar flow air supply ceiling,drug cabinet, instruction cabinet ,Wash hand sink, Liquid crystal light and so on.

Adhering to the operation tenet of Honesty Service and Pursue Perfection, our skillful and high quality employees will produce the best and most reliable products with advanced processing equipment and excellent materials. Comprehensive and prefect after-sales services will be available to customers. We are committed to provide the best products and comprehensive services to all customers.

We have Lasing cutting machine, Bending machine, Punching machine, these new machines makes sure the good-looking and superior quality for the machines.

Our workers have been more than 10 year experience in welding , and they have good skills to make sure the quality of machine.

Besides, we have R & D team, we have 5 engineer to design and develop the new product and selove the techncial issues of the machines.
