Air Shower Transfer windows with SS304 Roller Conveyor, electric interlocked pass through box​

Air Shower Pass box.pdf
2-side blowing, 4 nozzles on the two sides.

Electric locked,

SS304 roller converyor inside bottom to move the goods


Air Shower Pass Box is matched with conveyor, used for full automatic producing line which required clean class level.

Applications: For Pharmacy, electronic, food and other high claenliness clean room.

Pass box material: Powder coated steel or stainless steel

Pass box can do air shower and non air shower type, on the based design of pass box plus with automatic control system.

Features:

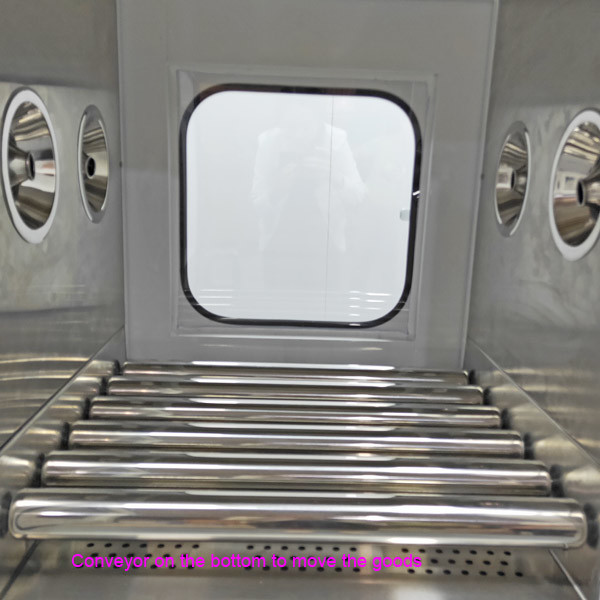

Picture of Air shower transfer windows, pass thru box





Princeples:

Air shower transfer window is installed between the non-cleanroom and clean room, it is used for passing the goods between the rooms.

The two doors are interlocked, one is open and other will be in closed stated, people put the goods inside, it will be blowing automcatilly, removing the dust particals from the goods,

therefore, the dirty air will not go into the clean room to pollute the clean room.

Roller conveyor inside bottom, it is easy for passing the goods.


Features:

The conveyor material: Stainless steel rollers or belt.
The conveyor running: forward working/backward working/Both forward and backward working.
The speed of conveyor: 0-0.1m/s

Optional accessories for Pass Box:
1. E-stop
2. UV light
3. Anti-static PVC curtains for doors, if customers want to reduce the cost.

we can offer special size and requirement as per our clients.

Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
