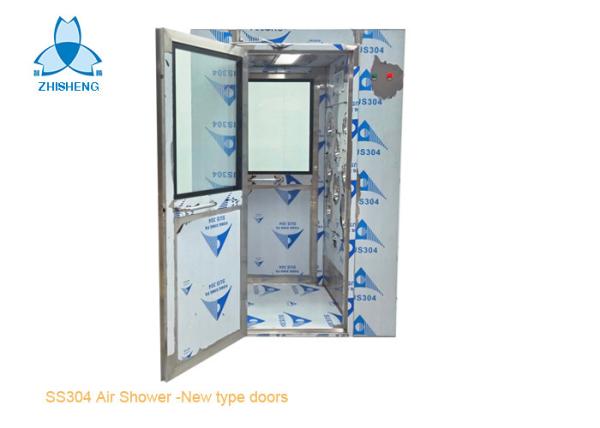

AC380 V Stainless steel 304 Air Shower with double-layer glass
window of doors for 1-2 persons
Air shower for clean room.
Power supply: AC380V, 50hz, three phase
Double-layer glass for door windws
Air
shower.pdf
Air shower is assembled with cabinets, roof, base, doors, electric
locks, door closers, door sensers, photoelectric sensors, blower
fans, HEPA filters, pre filters,nozzles, IC control panels, PCB
board and other parts. Two doors are interlocked, one is open,
other is closed, when people go into air shower, and close the
doors, the photoelectric sensor is infrated by person, the fan is
working, return air from primary filter into fan, then it is blowed
through HEPA filter, high airflow go through smal diameter of
nozzles , wind speed 22m/s from nozzles, which will blowing the
dust from persons, after blowing, open the exit door, person enter
clean room, thus avoiding to people take dust into cleanroom, keep
cleanliness of clean room.
According to the blowing method, the air shower room can be divided
into: top air shower room, single-side blowing air shower room for
one person, double-side blowing air shower room for 2
persons,Three-side blowing air shower room for one person,
double-side blowing air shower room for 2 persons, Double-side
blowing air shower room for multi-persons, L type air shower room,
According to the material of the casing:the air shower room can be
divided into: stainless steel air shower, powder coated steel air
shower.
According to the degree of automation, the air shower can be
divided into: intelligent voice air shower, automatic door air
shower, explosion-proof air shower, fast rolling door air shower
Air shower room can be divided according to different
objects:Personal air shower room, cargo shower room, air shower
tunnels, cargo shower tunnels.
Photos of Air shower
Features:
The two doors of the automatic air shower are electronically
interlocked and can function as an air lock chamber to prevent
external pollution and unpurified air from entering the clean area.
Eliminate the staff to bring hair, dust, bacteria into the
workshop, to meet the strict dust-free workshop purification
standards of the workplace, meet the production environment
pollution requirements, and produce high-quality products.
| Product | Clean room Air Shower for 1-2 persons |
| External size | W1400xD1000xH2100MM |
| Internal size | W800*D900*H1960mm |
| Material: | T=1.2 mm stainless steel 304 for main body and base |
| Doors type | W=800mm stainless steel single-leaf sliding door for entrance door
and exit door |

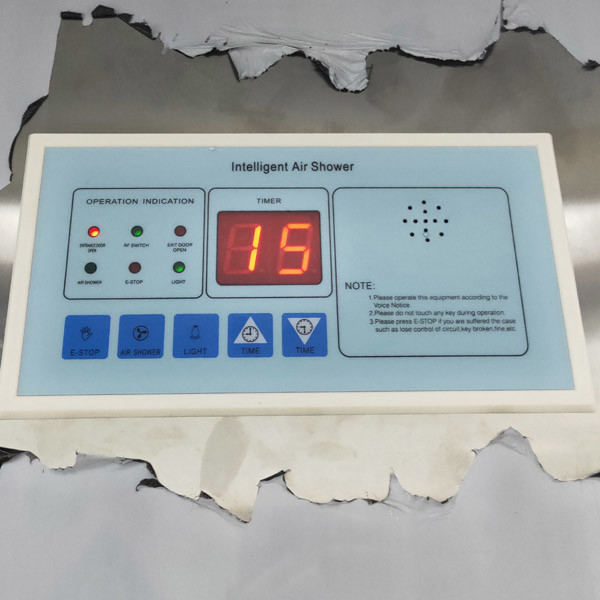

| Door closer | 2 SETs |
| Electric lock | 2 SETs |
| Indicator lights | Green and red |
| Blower fan | 2sets,capacity: 1800CMH/set |
| 99.99% HEPA filter | 610*610*69mm 2pcs |
| Pre filter | 2 pcs |
| Nozzle | 16+16=32pcs |
| Bloweing type | Two -side blowing, wind speed: >20-25m/s |
| Control system | Control by IC control panel |
| Photoelectric snesor | Omron brand 1pcs |
| LED light | 1x8W |
Description:
Cleanroom air shower is a kind of partial purifying equipment of
strong universality.
With novel structure, beautiful appearance, reliable running, low
consumption, energy saving and convenient maintenance,
it is widely used in electron, machinery, medicine, foodstuff,
color packing, brewage, biological engineering and other industry
and scientific research fields.
It is usually installed between clean room and unclean room. When
people and goods enter into clean room, they have to be blown at
first.
The blown clean air can get rid of dust bough by people and goods
and can effectively prevent dust source from entering into clean
area.
Principle
The air inside of air shower is firstly filtered under the action
of fan and enters into static pressure tank.
After filtered with high-efficiency air filter, clean air is jet
out at high speed from the nozzle of air shower.
The nozzle angel is adjustable. It can effectively blow out dust
attached on people and goods’ surface.
The blown dust enters into primary-efficiency air filter again,
circulating so and reaching to the aim of air shower.
Full stainless steel Air shower/New Corner Air shower Air shower
material
1. color steel plate
2. steel plate
3. stainless steel
Application: Stainless Steel Air Shower is usually used for Food ,
medicine, biological or other industry.
Standar size and specificaton:
| Model | Air shower | Cargo Air shower |
| AS-1200D-1 | AS-1400D-1 | AS-1400D-1.5 | AS-1400D-2 | CAS-1700T-2 (2 Modules) | CAS-1700T-4 (4 Modules) |
| Ex size WxDxH (MM) | 1200x1000x 2050 | 1400x1000x 2050 | 1400x1500x 2050 | 1400x2000x 2050 | 1800x2000x2050 | 1800x4000x 2050 |
| In size WxDxH (MM) | 800x900x 1920 | 800x900x 1920 | 800x1400x 1920 | 800x1900x 1920 | 1200x1900x 1920 | 1200x3900x 1920 |
| Doors | Swing door/sliding door/shutter door Door frame: SS/ALU |
| Suitable person | 1 | 1 | 1-2 | 2-3 | Cart |
| Nozzles | 12(two side) | 12(two sides) | 18(two sides) | 24(two sides) | 32(3- side) | 64(3- side) |
| Fan | #4250x1 set | #4195 x 2 sets | #4195x2sets | #4250x2sets | #4195x4sets | #4195x8sets |
| Power(W) | 1000W | 850W | 850W | 2000W | 1700W | 3400W |
| HEPA filter | 610x610x69 1pcs | 610x610x69 2pcs | 610x610x69 2pcs | 915x610x69 2 pcs | 610x610x69 4pcs | 610x610x69 8pcs |
| Nozzle | ф 25 or 32mm |
|
| Voltage | 380V/50Hz/3Ph; 220V/50Hz/1Ph |
| Control system | IC intelligent control panel, blowing automatically by
photoelectric sensor, the two door are electric interlocked. |
Note: Customer's size and specification can be acceptable.
Testing in factory:
All of equipment will be individually tested for safety and
performance in accordance with international Standards before
shipment. Each unit is shipped with a documentation outlining the
tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests

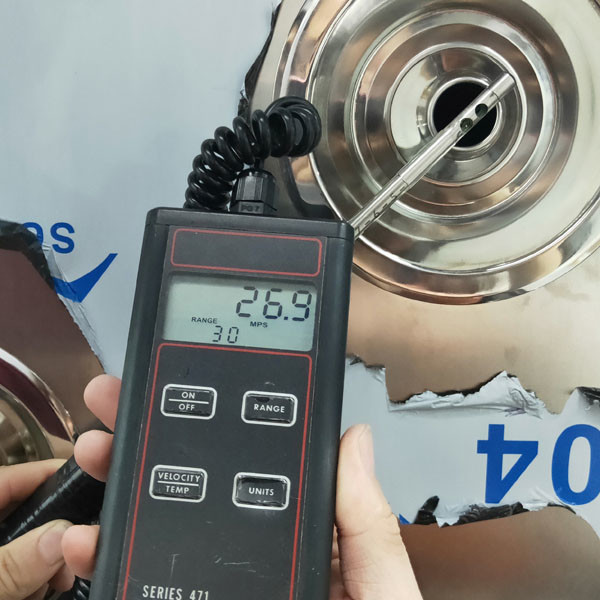

3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding
consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with
testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.

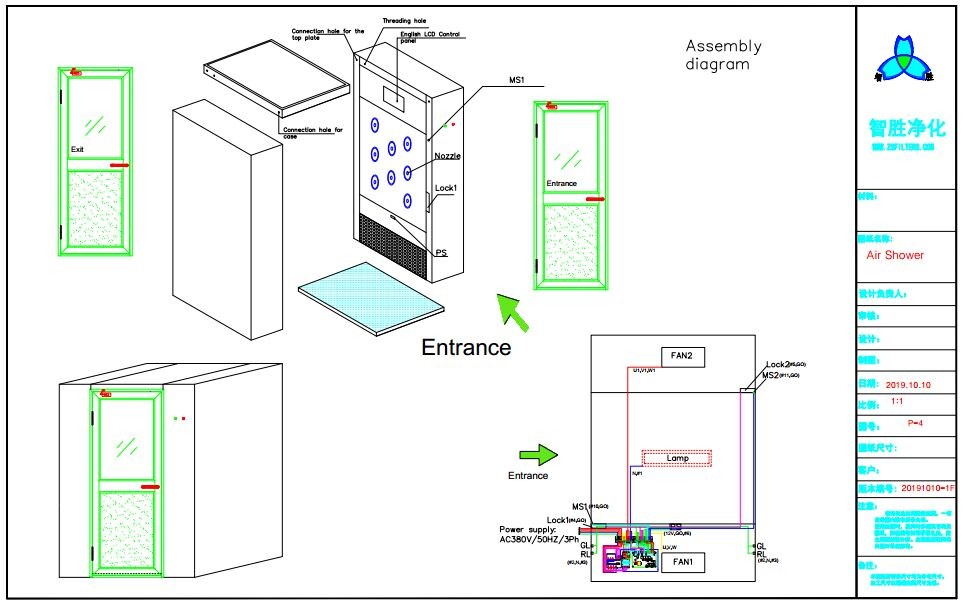

Air Shower's drawing:
Parts of Air Shower
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from
customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for
guiding insallation of machines. Like Thailand, Vietnam,
Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before
shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Certificate:
We have CE and ROHS Certificate for air shower
