    Air Velocity 25m/H 304 Stainless Steel Air Shower

    Ask Lasest Price
    Brand Name : Zhisheng
    Model Number : AS S-1400D-1
    Certification : ISO 9001/CE/ROHS
    Payment Terms : T/T, Western Union
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : about 15 days upon receipt of deposit
    • Product Details
    • Company Profile

    Air Velocity 25m/H 304 Stainless Steel Air Shower

    Stainless Steel Air Shower Standard AS S-1400D-1,air velocity 25m/h, high airflow volume


    Stainelss steel air shower for clean room


    • Material for main body: T=1.2mm Stainless steel 304
    • Doors type: single-leaf swing door with half glass
    • Nozzle diameter: 27mm, mirror stainless steel
    • Control system: English IC control panel, can adjust the shower time 1-99seconds
    • Power supply: AC380V,50HZ,3PH

    We have several types of stainless steel air showers available for cleanrooms, food factories, laboratories, and industries.

    Air showers are an important part of the decontamination process that’s required to ensure a clean, sterile environment. HEPA filter and pre filter in the air showers remove dust particals from products and clothing before people enter (and exit) cleanrooms, labs, and industrial workspaces. As a result, the air shower not only protects the cleanroom from contamination, but it also helps ensure the safety of workers.

    Features:


    The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.


    Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.


    Air shower is assembled with cabinets, roof, base, doors, electric locks, door closers, door sensers, photoelectric sensors, blower fans, HEPA filters, pre filters,nozzles, IC control panels, PCB board and other parts. Two doors are interlocked, one is open, other is closed, when people go into air shower, and close the doors, the photoelectric sensor is infrated by person, the fan is working, return air from primary filter into fan, then it is blowed through HEPA filter, high airflow go through smal diameter of nozzles , wind speed 22m/s from nozzles, which will blowing the dust from persons, after blowing, open the exit door, person enter clean room, thus avoiding to people take dust into cleanroom, keep cleanliness of clean room.


    According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,


    According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.


    According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower


    Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.


    Size and specification:


    ProductStainless Steel Air Shower Standard AS S-1400D-1,air velocity 25m/h, high airflow volume
    External sizeW1400xD1000xH2100MM
    Internal sizeW800*D900*H1960mm
    Material:T=1.2 mm stainless steel 304 for main body and base
    Doors type

    W=800mm stainless steel single-leaf sliding door for entrance door and exit door

    Door closer2 sets
    Electric lock2 sets
    Indicator lightsGreen and red
    Blower fan2sets,capacity: 1800CMH/set
    99.99% HEPA filter610*610*69mm 2pcs
    Pre filter2 pcs
    Nozzle6+6=12 pcs
    Bloweing typeTwo -side blowing, wind speed: >20-25m/s
    Control systemControl by IC control panel
    Photoelectric snesorOmron brand 1pcs
    LED light1x8W

    Description:


    Cleanroom air shower is a kind of partial purifying equipment of strong universality.


    With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,


    it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.


    It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.


    The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
    Principle


    The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.


    After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.


    The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.


    The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.

    Full stainless steel Air shower/New Corner Air shower Air shower material

    1. EGI steel with powder coated


    2. Cold rolled steel with powder coated


    3. stainless steel


    Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.


    Air Shower's drawing:


    Air Velocity 25m/H 304 Stainless Steel Air Shower

    Air Velocity 25m/H 304 Stainless Steel Air Shower

    Air Velocity 25m/H 304 Stainless Steel Air Shower

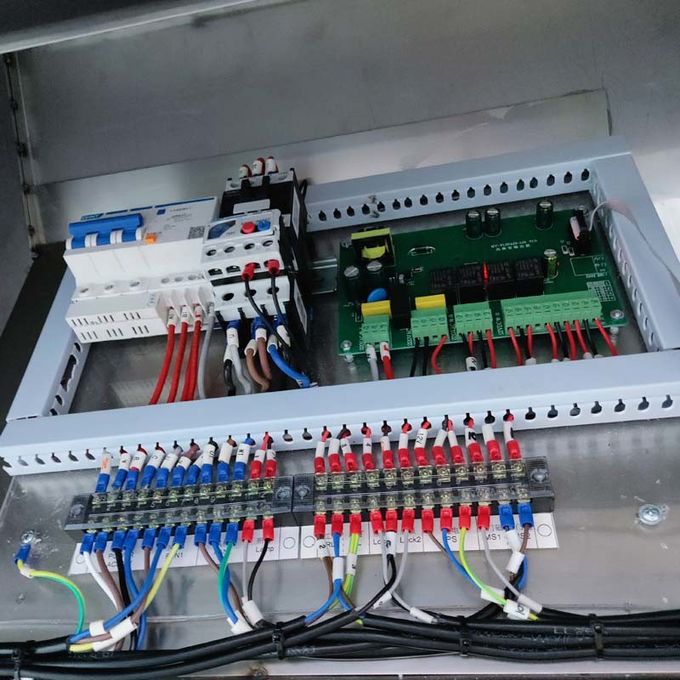

    PCB circuit board, mark the numbers on each wires


    Air Velocity 25m/H 304 Stainless Steel Air Shower


    Blower fan with high volume 2500m3/h

    Air Velocity 25m/H 304 Stainless Steel Air Shower


    Standard size and specification:

    ModelAir showerCargo Air shower
    AS-1200D-1AS-1400D-1AS-1400D-1.5AS-1400D-2CAS-1700T-2 (2 Modules)
    External dimensions WxHxD(mm)1200x1000x 21001400x1000x 21001400x1500x 21001400x2000x 21001800x2000x2100
    In Dimensions WxHxD(mm)800x900x 1960800x900x 1960800x1400x 1960800x1900x 19601200x1900x 1960
    Material for casing
    • Power coated steel, 2 powder coated steel for outside and SS304 for inside,or Full SS304
    DoorsSwing door /Sliding door/High speed shutter door; Material: stainless steel or aluminum
    Suitable person111-22-3Cart
    Nozzles12(two side)12(two sides)18(two sides)24(two sides)32(three sides)
    Blower fan#4250x 1 set#4195 x 2 sets#4195x2sets#4250x2sets#4195x4sets
    Blow power(W)1000W850W850W2000W1700W
    HEPA filter’s dimensions

    610x610x69

    one piece

    610x610x69 two piece610x610x69 two piece915x610x69 two pieces

    610x610x69

    4pcs

    Nozzle diameter32mm
    Air shower time0~99s Adjustable
    Spurt wind speed20~25m/s
    Voltage380V/50Hz/3Ph; 220V/50Hz/1Ph
    Filter efficiencyAbove 99.99% efficiency on 0.3um particles
    Control system

    IC control panel, electronic interlock and automatic blowing


    Note: Customer's size and specification can be acceptable.


    Air Velocity 25m/H 304 Stainless Steel Air Shower


    Testing in factory:


    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing


    Warranty:


    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.


    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.
